Screw Type Geared Beam Trolley 2 Ton X 6 Metre (Adjustable Travel Girder Hoist)

Name: Screw Type Geared Beam Trolley 2 Ton X 6 Metre (Adjustable Travel Girder Hoist)
Brand: SECUREFIX DIRECT
SKU: SFSTGT2
Price: 150 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

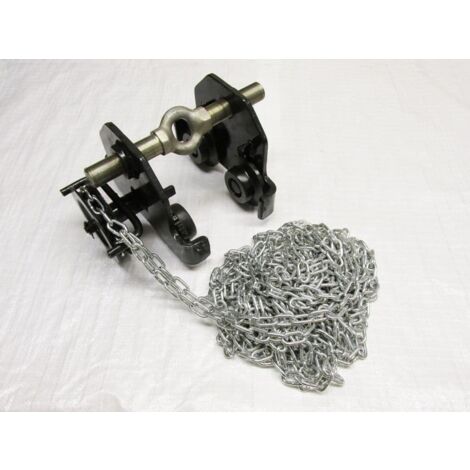

These 2 ton x 6 metre geared trolleys are designed to be attached to steel beams, serving as an adjustable lifting point for chain blocks, hoists, and various lifting tackle. They can be moved with ease and precision thanks to the hand chain and gear combination. The screw type adjuster allows for efficient adjustment to fit different beam sizes as required.

Technical specifications

Product Code: SFSTGT

SWL: 2 Ton

Beam Size Range: 66-220 mm

Length: 300 mm

Width: 350 mm

Height: 225 mm

Hand Chain Length: 5.8 m

Lifting Height: 6 m

Conforms To: BS EN 13157: 2004+A1: 2009

Supplied With Test Certificate

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
2000 kg
Height
22.5 cm
Material
Two-material

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
