General description

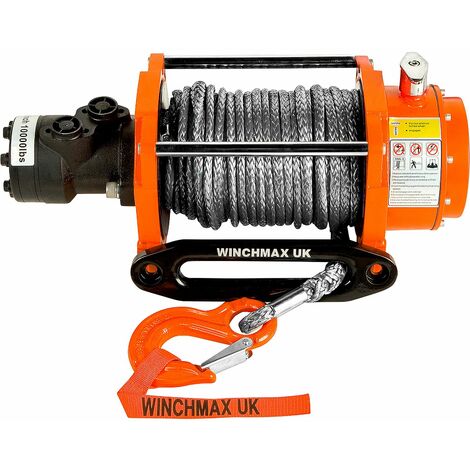

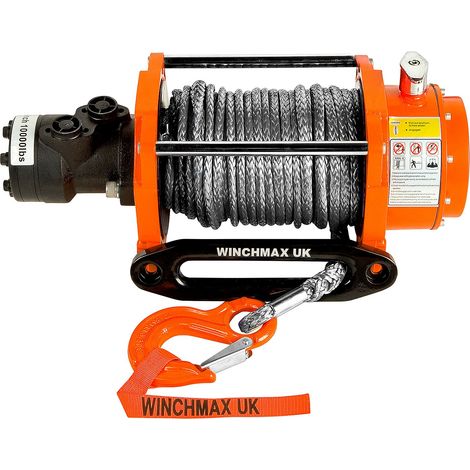

The 10,000lb (4,536kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. It features a robust construction and advanced technology to ensure reliable performance.
Technical specifications
- Single Line Rated Pull: 10,000lb (4,536kg)
- Motor: Hydraulic
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder-coated
- Weight (GW): 47kg (103lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Usage
This hydraulic winch is perfect for lifting and pulling heavy loads in various settings, including recovery operations and industrial applications. Its high pulling capacity and durable construction make it a reliable choice for demanding tasks.
Other information
- Features a 25m x 12mm genuine Dyneema synthetic rope
- Includes a competition hook with safety catch and hand saver, colored orange
- Aluminium hawse fairlead, precision CNC milled and laser-etched
- Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components
