General description

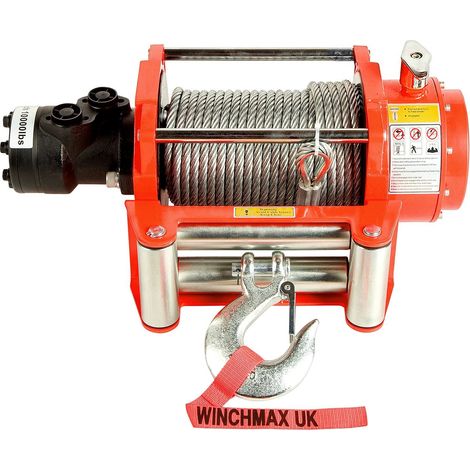

The 10,000lb (4,536kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and high-performance capabilities to meet demanding tasks.
Technical specifications
- Single Line Rated Pull: 10,000lb (4,536kg)
- Motor: Hydraulic
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 9.1mm galvanized steel wire rope
- Hook: Clevis hook 3/8 inch, zinc plated
- Fairlead: 4-Way roller fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Winch Finish: Original Orange powder-coated
- Weight (GW): 56kg (123lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Usage
This hydraulic winch is suitable for a variety of applications, including:
- Recovery operations for vehicles and trailers
- Heavy lifting in industrial settings
- Assistance in agricultural tasks
Other information
Industry-leading lifetime warranty on mechanical components and a 3-year warranty on electrical components. VAT invoice provided with every sale.
