General description

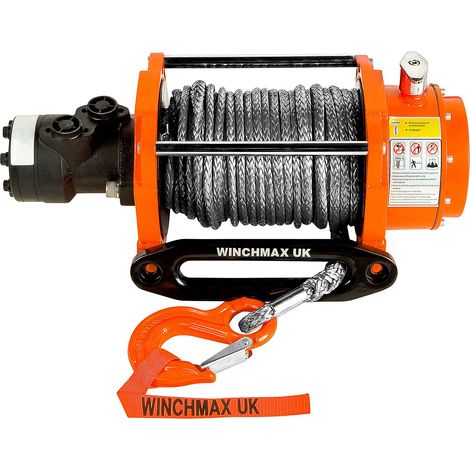

The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and high-performance capabilities.
Technical specifications
- Single Line Rated Pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 13mm Dyneema SK75 Synthetic Rope
- Hook: Competition hook with safety catch, orange
- Fairlead: Aluminium Hawse Fairlead
- Flow: 50-60 l/min
- Pressure: 10.8Mpa (108 Bar)
- Winch Finish: Original Orange powder coated
- Weight (GW): 48kg (105lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Usage
This hydraulic winch is suitable for a variety of applications, including:
- Recovery operations for vehicles and trailers
- Heavy lifting in industrial settings
- Assistance in agricultural tasks
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
