General description

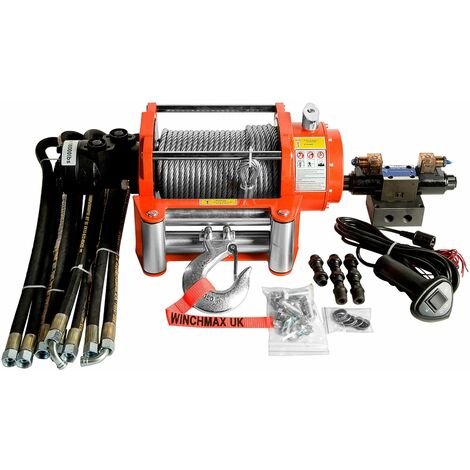

The 10,000lb (4,536kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust 12V control system and comes equipped with essential components including pipes and connectors.Technical specifications
- Single Line Rated Pull: 10,000lb (4,536kg)
- Motor: Hydraulic
- Control: Remote switch with 4.5m lead, in and out
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 9.1mm diameter steel rope
- Hook: Clevis hook 3/8 inch, zinc plated
- Fairlead: 4-Way roller fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder coated
- Weight (GW): 64kg (141lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Compatible with the full WINCHMAX range of wireless remote controls
- Includes hydraulic hose assemblies (1.25m long x4) fitted with 18 x 1.5mm threaded fittings
- High tensile fixing bolt kit included
