General description

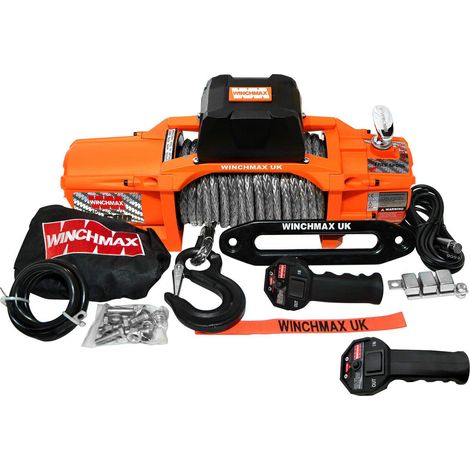

The 13,500lb (6,123kg) SL Series Original Orange 24V Electric Winch is designed for recovery trucks and 4x4 vehicles with a capacity of up to 3.5 tons. It features a robust construction and advanced technology, making it a reliable choice for heavy-duty applications.
Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 24V 6.8hp/5.1kw series wound
- Control: Big grip remote switch with 4.5m lead
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 63.5mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Black, painted
- Cable: 28m x 11mm Dyneema SK75 multi-strand rope
- Hook: Competition hook with safety catch, black
- Fairlead: One-piece billet aluminium hawse fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm Diameter
- Finish: Original Orange powder coated
- Weight (GW): 30kg (66lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00” ±0.015” x 4.50” ±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Usage
This winch is ideal for heavy-duty recovery tasks, making it suitable for off-road vehicles and recovery trucks. Its powerful motor and durable construction ensure reliable performance in challenging conditions.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
