General description

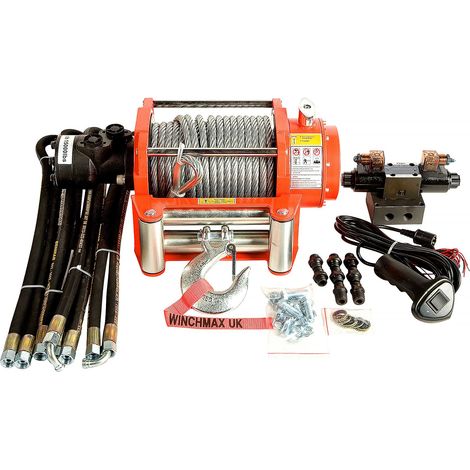

The 15,000lb (6,804kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and a full control system for reliable performance.Technical specifications
- Single Line Rated Pull: 15,000lb (6,804kg)
- Motor: Hydraulic
- Control: Remote switch, 4.5m lead, in & out
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 12mm dia steel wire rope
- Hook: Clevis hook 1/2 inch, zinc-plated
- Fairlead: 4 roller fairlead
- Flow: 50-60 l/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder-coated
- Weight (GW): 69kg (152lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Compatible with the full WINCHMAX range of wireless remote controls.
- Includes full 12V wired control system, pipes, and connectors.
- Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
- High tensile fixing bolt kit.
Other information
- Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical.
- VAT invoice provided with every sale.
