General description

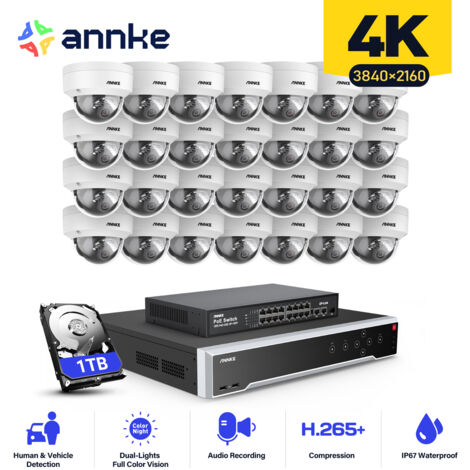

The ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 28 night vision cameras, providing comprehensive security for your home or business. With advanced features such as email alerts, motion detection, and remote access via APP/PC, this system ensures you stay connected and informed about your property’s safety.Technical specifications
- NVR: 12 MP recording resolution
- Camera Input: 32 IP camera inputs (total incoming bandwidth of 256 Mbps)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Video Output: HDMI 4K (3840 × 2160), VGA
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Camera: 4 mm lens, 1/2.4" Progressive Scan CMOS sensor
- Max Camera Resolution: 3840*2160 (8MP)
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Weight (Camera): 1.2 lb. (550 g)
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Weight (NVR): ≤11 lbs. (5 kg)
Installation
- Easy installation with PoE (Power over Ethernet) support for long-distance transmission (100 to 300 m)
- Includes 16 PoE ports for camera connections
Usage
- Real-time monitoring with remote access via APP/PC
- Smart motion detection with human and vehicle recognition to reduce false alerts
- Integrated microphone for audio recording, with the option to mute
