General description

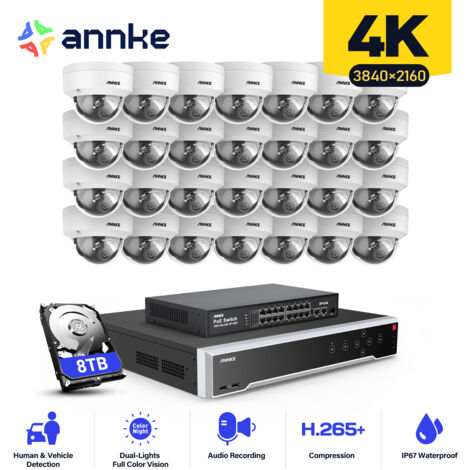

ANNKE 32CH Wired NVR Kit includes 28 night vision cameras, providing a comprehensive security solution for both indoor and outdoor environments. With advanced features such as email alerts, motion detection, and remote access via app or PC, this system ensures reliable surveillance and peace of mind.Technical specifications
- Recording resolution: 12 MP
- Camera input: 32 channels (including 16 PoE channels)
- Video output: HDMI up to 4K (3840 × 2160), VGA up to 1080p
- Video compression: H.265+/H.265/H.264+/H.264/MPEG4
- Incoming/outgoing bandwidth: 256 Mbps
- Max recording resolution: Up to 12 MP
- Max playback resolution: Up to 12 MP
- Max playback channels: 16 channels
- Max HDD capacity: Up to 12 TB per HDD (48 TB total)
- Operating power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera dimensions: Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Camera weight: 1.2 lb. (550 g)
- NVR dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 512 GB microSD/SDHC/SDXC for camera storage
- 4 SATA interfaces for hard drives
Installation
- Easy installation with PoE support for simplified wiring
- Includes 16 PoE ports for direct camera connection
Usage
- Remote access via app or PC for real-time monitoring
- Advanced motion detection with human and vehicle recognition to minimize false alerts
- Audio recording capability with built-in microphone
