General description

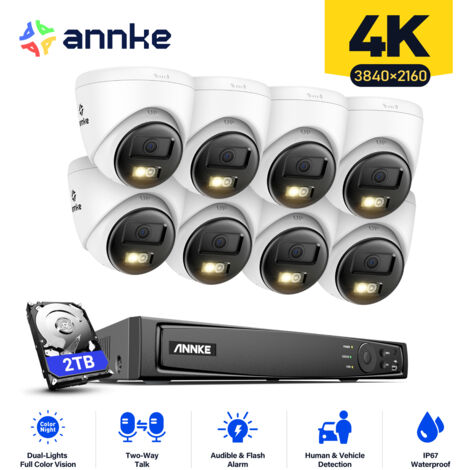

The ANNKE 4K Outdoor Video Surveillance Kit includes an 8-channel NVR and 8 smart dual light cameras, providing advanced security features such as two-way audio, night vision, and email alerts. This wired surveillance system allows for remote access and is equipped with a 2TB hard drive for ample storage.Technical specifications
- Camera Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840 × 2160 (8MP)
- Main Stream Frame Rate: 50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Substream Frame Rate: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Operating Power: DC 12 V± 25%, max. 8 W; PoE (802.3af), max. 9.5 W
- Operating Temperature: -22 °F – 140 °F / -30 °C – 60 °C
- Dimensions (Camera): Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
- Weight (Camera): Approx. 340 g (0.7 lb)
- NVR Dimensions: 315 mm x 240 mm x 48 mm (12.4” x 9.4” x 1.9”)
- NVR Weight: 1 kg (2.2 lbs) without hard disk
Compatibility and accessories
- Supports up to 8 IP cameras with PoE inputs
- Compatible with third-party network cameras
- Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
- Hard Drive Capacity: Up to 8 TB
Installation
- Easy installation with PoE technology
- Includes necessary cables for setup
Usage
- Remote access via mobile devices (iPhone, iPad, Android)
- Two-way audio for real-time communication
- Smart dual-light technology for enhanced night vision
- Motion detection with human and vehicle recognition
Other information
