General description

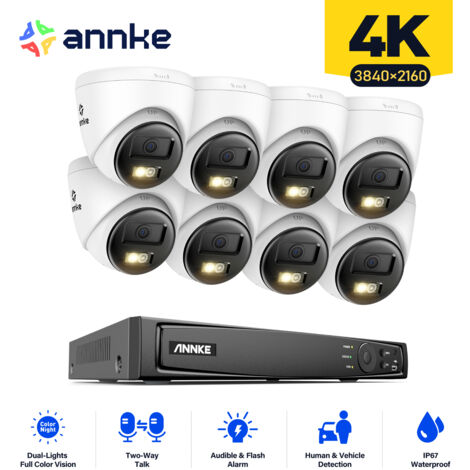

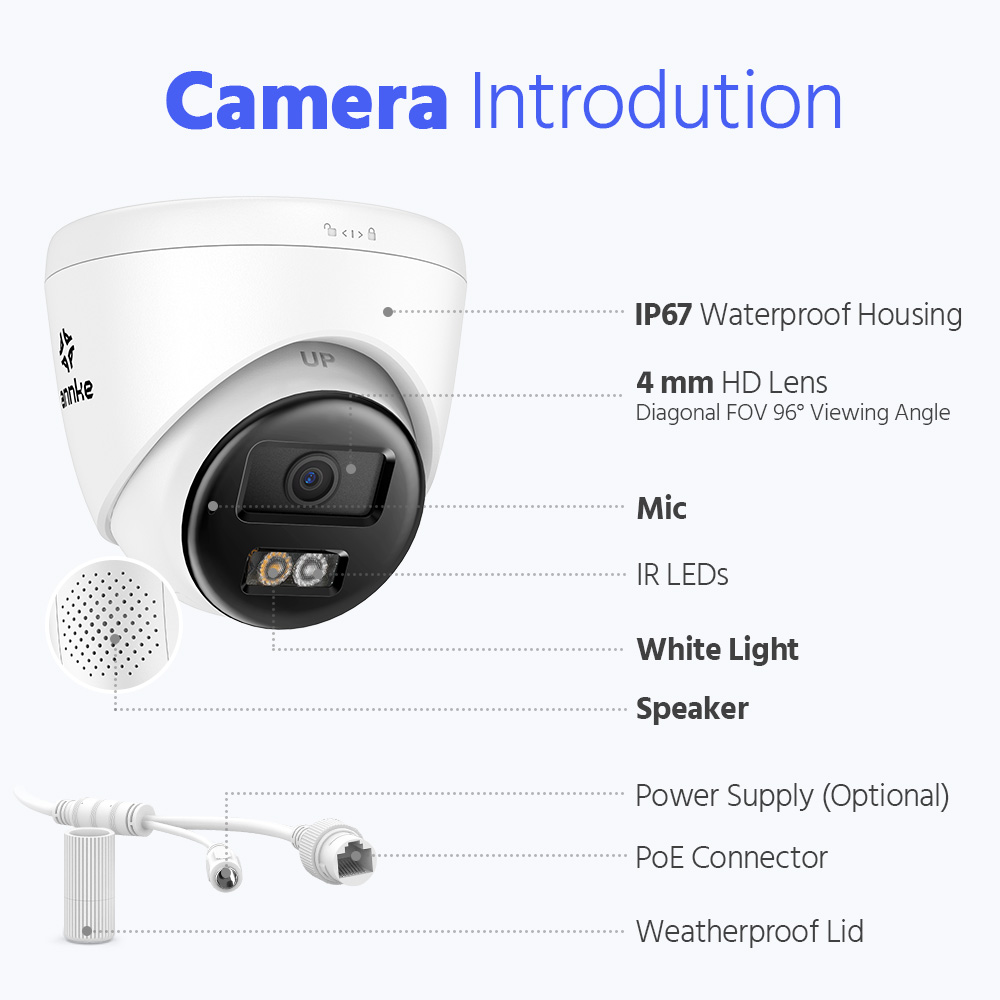

The ANNKE 4K Outdoor Video Surveillance Kit includes an 8-channel NVR and 8 smart dual-light cameras, designed for comprehensive security coverage. This kit features advanced night vision capabilities, two-way audio, and remote access, making it ideal for both residential and commercial use.Technical specifications
- Camera Type: IP Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840 × 2160 (8MP)
- Main Stream: 50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Substream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (L X W X H): Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
- Weight: Approx. 340 g (0.7 lb)
- NVR Max Recording Resolution: Up to 12MP (4096 X 3072)@30fps
- NVR Dimensions: 12.4” X 9.4” X 1.9” (315 X 240 X 48 mm)
- NVR Weight: 2.2 lbs (1 kg) without hard disk
Compatibility and accessories
- Supports up to 8 IP cameras with PoE inputs
- Compatible with third-party network cameras
- Storage: Built-in microSD/SDHC/SDXC slot, up to 512 GB
- HDD Capacity: Up to 8 TB
Installation
- Easy installation with PoE support
- Includes necessary mounting hardware
Usage
- Remote access via mobile devices (iPhone, iPad, Android)
- Two-way audio for real-time communication
- Smart dual-light technology for enhanced night vision
- Motion detection with human and vehicle recognition
