General description

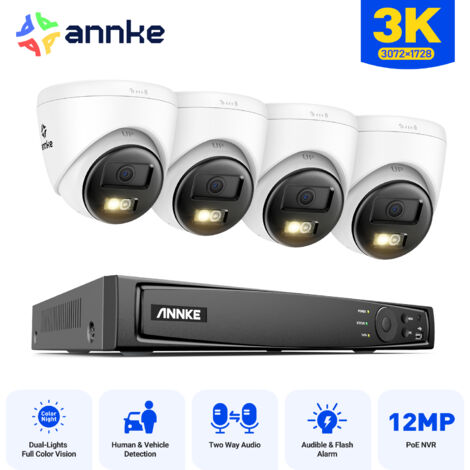

ANNKE 5MP Outdoor Video Surveillance Kit is a comprehensive security solution featuring an 8-channel NVR and four smart dual-light cameras. This system offers advanced night vision capabilities, two-way audio, and motion detection, ensuring reliable surveillance for your home or business. With remote control access via mobile apps and PC, you can monitor your property from anywhere.Technical specifications
- NVR supports live viewing, recording, and playback up to 12 MP resolution
- Video output via HDMI up to 4K (3840 × 2160)
- Camera resolution: 3K (3072 × 1728) at 20 fps
- Compression formats: H.265+/H.265/H.264+/H.264
- Max recording resolution: Up to 12 MP (4096 × 3072) at 30 fps
- Operating power: DC 12 V ± 25%, max. 7.5 W; PoE (802.3af), max. 9 W
- Operating temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Camera dimensions: Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
- Camera weight: Approx. 340 g (0.7 lb.)
- NVR dimensions: 315 mm × 240 mm × 48 mm (12.4” × 9.4” × 1.9”)
- NVR weight (without HDD): 1 kg (2.2 lbs)
Compatibility and accessories
- Supports up to 8 IP cameras with PoE inputs
- Compatible with third-party network cameras
- Storage capacity: Built-in microSD/SDHC/SDXC slot, up to 512 GB
- HDD capacity for NVR: Up to 8 TB
Installation
- Easy installation with PoE support for camera connections
- Includes 1 RJ45 10/100 Mbps self-adaptive Ethernet port for NVR
Usage
- Remote monitoring via mobile apps (iPhone, iPad, Android) and PC
- Real-time security with two-way audio and motion detection
- Smart dual-light technology for enhanced night vision
- Customizable alarm settings for motion detection
