General description

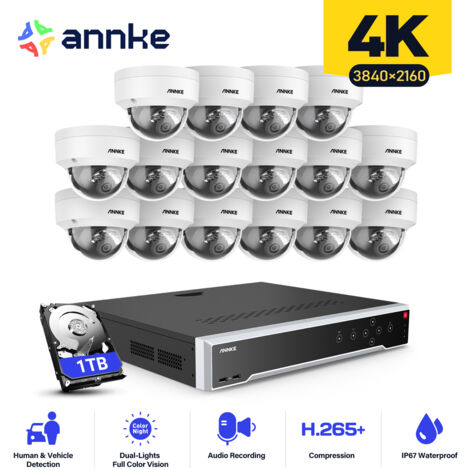

The ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 16 night vision cameras, designed for comprehensive outdoor security. With advanced features such as email alerts and motion detection, this system ensures reliable monitoring of your property. The kit supports remote access via an app or PC, making it convenient to keep an eye on your premises from anywhere.Technical specifications
- NVR Resolution: 12 MP
- Camera Resolution: 3840 × 2160 (4K Ultra HD)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Incoming Bandwidth: 256 Mbps
- Max Recording Resolution: Up to 12 MP
- Max Playback Resolution: Up to 12 MP
- Max Playback Channel: 16 Channel
- Storage: 4 SATA interfaces, up to 12 TB capacity for each HDD (48 TB total)
- Camera Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F – 140 °F (-30 °C – 60 °C)
- Camera Dimensions: Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Camera Weight: 1.2 lb. (550 g)
- NVR Dimensions: 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- NVR Weight: ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- Compatible with external storage via SATA interfaces
Installation
- Easy installation with PoE support for simplified wiring
- Includes 4 SATA interfaces for hard drives
Usage
- Ideal for outdoor surveillance with IP67 weatherproof rating
- Real-time audio monitoring with built-in microphone
- Advanced motion detection with human and vehicle recognition
