General description

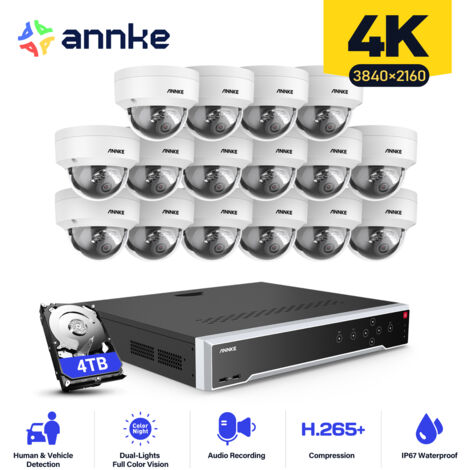

The ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 16 night vision cameras, designed for comprehensive outdoor security. It features advanced motion detection, email alerts, and remote access via an app or PC. The system is equipped with a 4TB hard drive for extensive video storage.Technical specifications
- NVR Resolution: Up to 12 MP
- Camera Resolution: 3840 × 2160 (4K Ultra HD)
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Incoming Bandwidth: 256 Mbps
- Max Playback Resolution: Up to 12 MP
- Max Playback Channels: 16
- Camera Lens: 4 mm
- Field of View: Horizontal 78°, Vertical 38°, Diagonal 96°
- Min Illumination: Color 0.005 Lux, B/W 0 Lux with IR
- Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Weight (Camera): 1.2 lb. (550 g)
- Dimensions (NVR): 17.5" X 15.7" X 2.8" (445 mm X 400 mm X 71 mm)
- Weight (NVR): ≤11 lbs. (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- 4 SATA interfaces for hard drives, supporting up to 12 TB each (48 TB total)
- Built-in microSD/SDHC/SDXC slot, up to 512 GB
Installation
- Easy installation with PoE support for simplified wiring
- Includes 16 camera inputs for comprehensive coverage
Usage
- Remote access via mobile app or PC for real-time monitoring
- Advanced motion detection with human and vehicle recognition to reduce false alerts
- Audio recording capability with built-in microphone
