General description

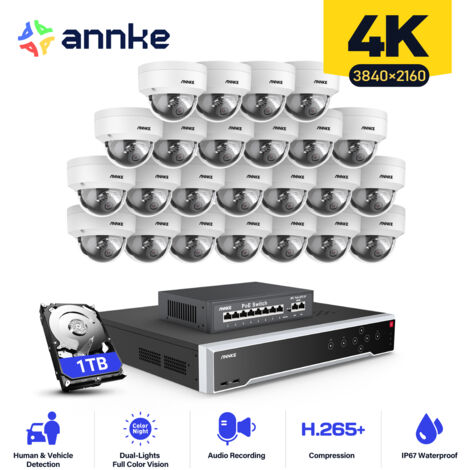

The ANNKE Wired Video Surveillance Kit includes a 32-channel NVR and 24 night vision cameras, designed for comprehensive outdoor security. It features advanced motion detection, email alerts, and remote access via an app or PC, ensuring you can monitor your property anytime, anywhere.Technical specifications
- NVR Resolution: Up to 12 MP
- Camera Resolution: 3840 × 2160 (4K Ultra HD)
- Camera Lens: 4 mm
- Field of View: Horizontal 78°, Vertical 38°, Diagonal 96°
- Video Compression: H.265+/H.265/H.264+/H.264/MPEG4
- Max Playback Resolution: Up to 12 MP
- Max Recording Capacity: Up to 12 TB per HDD (48 TB total)
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
- Weight (Camera): 1.2 lb (550 g)
- Dimensions (NVR): 445 mm × 400 mm × 71 mm (17.5" × 15.7" × 2.8")
- Weight (NVR): ≤11 lbs (5 kg)
Compatibility and accessories
- Supports up to 32 IP cameras (including 16 PoE channels)
- 4 SATA interfaces for hard drives
- Built-in microSD/SDHC/SDXC slot, supports up to 512 GB
Installation
- Easy installation with Power over Ethernet (PoE) support
- Includes 16 PoE ports for simplified wiring
Usage
- Remote monitoring via app or PC
- Real-time audio recording with built-in microphone
- Advanced motion detection with human and vehicle recognition
