Product information

Description

General description

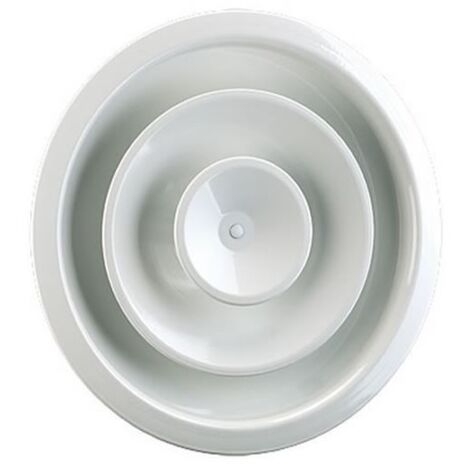

The Ceiling Air Diffuser Air Grille CD is designed for efficient air distribution in both walls and ceilings. It is available in various models to suit different installation needs.

Technical specifications

  • Material: Aluminium
  • Colour: White, enamelled
  • Models available: CD 160, CD 200, CD 250, CD 315
ModelØ A mmØ D mmØ E mmF mm
CD 16026015022070
CD 20031020027070
CD 25036025032070
CD 31542030038070

Compatibility and accessories

  • Designed for connection to vent pipes

    • Usage

  • Flow rate can be regulated for optimal air distribution

    • Other information

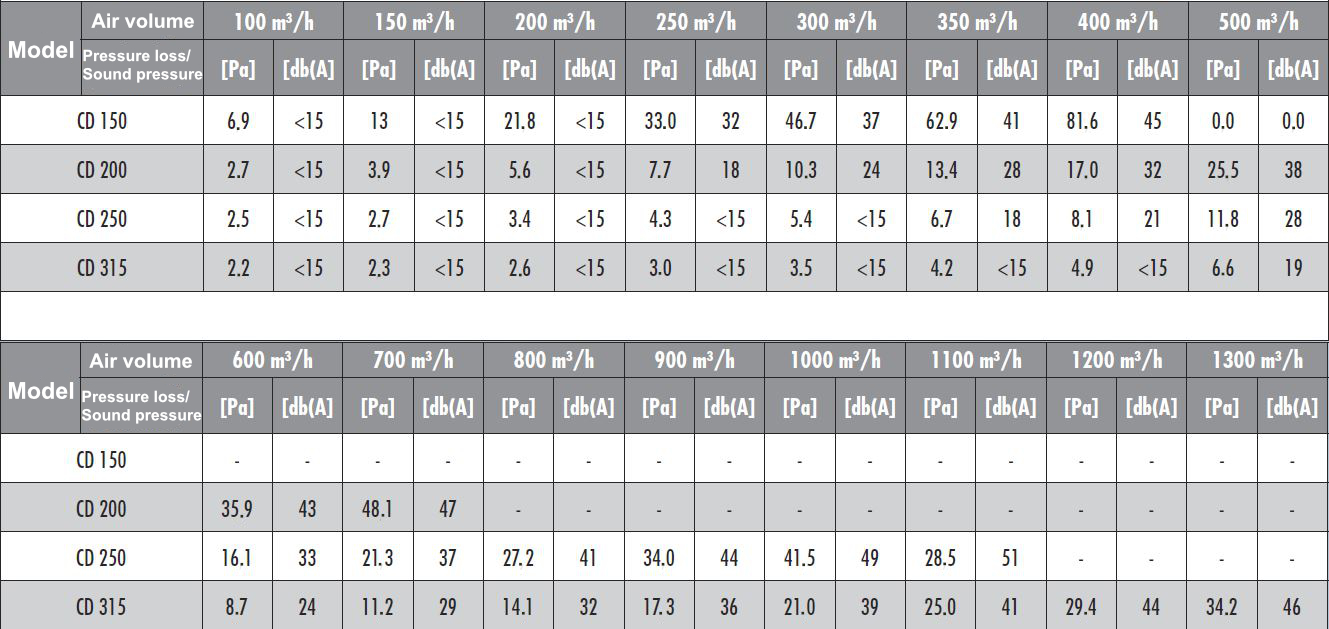

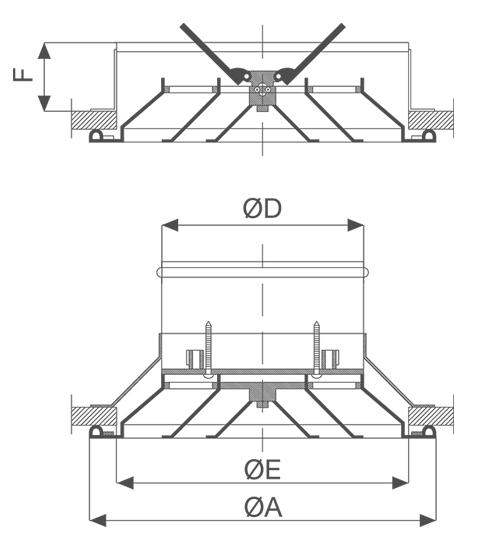

    CD ceiling air diffusor dimensionsCD air diffusor Air grille Vortice technical data air volume and pressure loss

    Features

    • Brand
      VORTICE
    • Colour
      White
    • Shape
      Cylindrical
    • Material
      Aluminium
    • ManoMano Reference
      ME30905565
    • MMID
      358066513553
    • Product code
      221690
    • EAN
      8010300221694
