Chain Block and Push Trolley Combination 3T 3M (Beam Girder Tackle Manual)

Name: Chain Block and Push Trolley Combination 3T 3M (Beam Girder Tackle Manual)
Brand: SECUREFIX DIRECT
SKU: SFCCBPT33
Price: 200 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

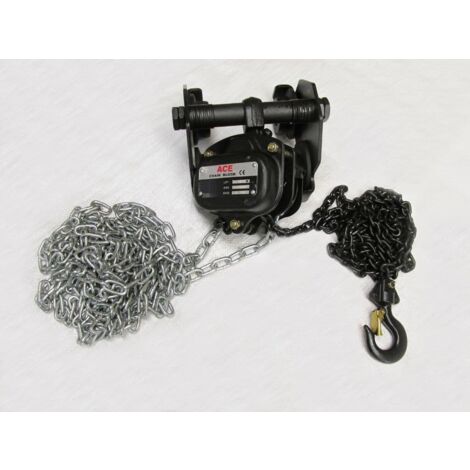

Combination Chain Block & Push Trolley is an excellent all-in-one product designed for ease and convenience in lifting applications. The push trolley attaches to steel beams, acting as an adjustable lifting point for the chain block, which is manufactured with a chain guide for smooth operation and durable steel construction.

Technical specifications

Safe Working Load: 3 Ton (3000 KGS)

Lift: 3 Metre

Hand Chain EWL: 2.8 M

Chain Falls: 2

Load Chain Diameter: 7 MM

Trolley Length: 320 MM

Trolley Width: 310 MM

Overall Height: 400 MM

Recommended Beam Size: 97 MM - 190 MM

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Safety hooks are drop forged and heat treated for safety and durability.

Supplied with test certificate (sent via email).

Please note that the color may vary; contact for a black finish if required.

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
3000 kg
Supplied with hauling pulley
Yes
Height
40 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
