Coilover Kit for Seat Leon 1M1 1999-2006 Audi TT 8N 1.8 1.8T Suspension

Applications

for Audi

for Audi TT Coupe 8N3 1998-2006

for Audi TT Roadster 8N9 1999-2006

for Seat

for Seat Leon 1M1 1999-2006

Motor: 1.8/ 1.8T

Note:

1 Does not for Quattro models;

2 Does not fit Vehicles with auto/self leveling suspension.

3 You may will need shorter Sway Bar Link.

Specifications

Adjustable Height: Front Lowering: 30-75mm (depends on vehicle models)

Adjustable Height: Rear Lowering: 30-65mm (depends on vehicle models)

Front Spring Rate: 7 kg/mm(392 lbs/in)

Rear Spring Rate: 6 kg/mm (336 lbs/in)

Damping: Fix Damping

Spring length Front: 140 mm

Spring length Rear: 275 mm

Shock type: Twin tube

Spring Preload advised: 7-10 mm

Top mounts: Front and rear OE top mounts required

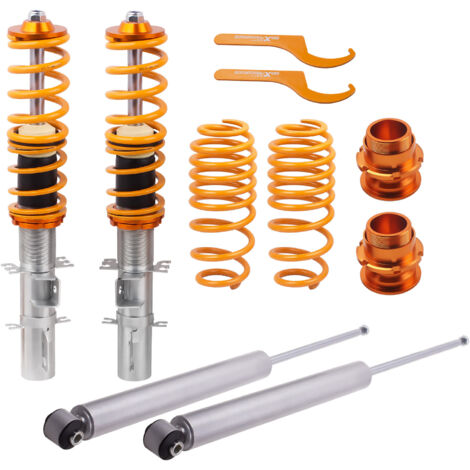

Quantity:

2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners

Feature

1. Lower height adjustable (depends on vehicle models)
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Notice

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
