Coilover Suspension Kit for VW Golf Mk4 Bora New Beetle FWD 1998-2007

Notice:No Top Mount Included, Modification Required If You Use OE Top Mount

Application:

for VW Golf  MK4 1J1 FWD 08/1997-12/2007

for VW New Beetle 9C1, 1C1 FWD 01/1998-11/2010

for Seat Leon 1M1 FWD 11/1999-06/2006

( Will not fit 4-MOTION (AWD) , VW Golf MK4 R32, and Audi quattro models. )

Specification:

Adjustable height: Front & Rear

Front lowering 30-90mm (depending on the vehicle models)

Rear lowering 30-75mm (depending on the vehicle models)

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 58-63 mm

Spring length Front: 170 mm

Spring length Rear: 275 mm

Spring Preload advised: 7-10 mm

Shock type: Twin tube

Warranty: 2 years warranty

Attention: As it is high performance aftermarket coilover, few modification might be required for some vehicles

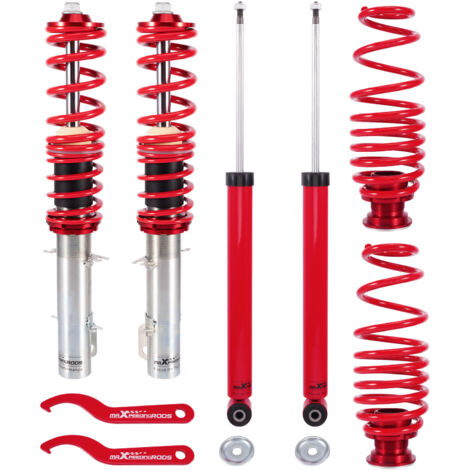

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Feature:

1. Lower height adjustable (depends on vehicle models)
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Notice

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
