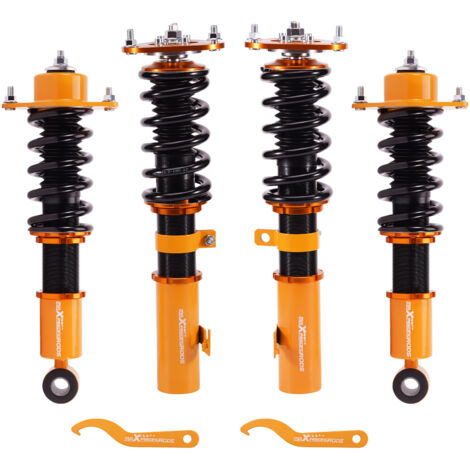

Coilovers For Toyota Corolla 2003-2008 E12 Matrix E130 XRS 1.8 VVT-i 1.4 D4-D

Application

For Toyota Corolla 9th Gen (_E12_) (01/2001-12/2007)

For Toyota Corolla 9th Gen. (E130) 2003-2008

For Toyota Matrix XRS (E130) 2003-2008

Note:

not fit for Corolla E150 "Ascent" model .

Specifications

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable: Not available

Spring rate Front: 12 kg/mm (672 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 190 mm

Spring length Rear: 180  mm

Spring Preload advised: 7-10 mm

Front top mounts: pillow ball bearing camber plate

Rear top mounts: standard rubber

Camber adjustable: front only

Shock type: Twin tube


Feature

1. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
2. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
3.CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
5. High tensile spring---  600,000 times continuously test to assure it's high tensile strength.
6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Introduction:

maXpeedingrods B2 coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles),  which offers you a lowered stance, improved performance  for your daily use vehicle.
