Coilovers Suspension Kit for Vauxhall Insignia 2WD 1.4 1.6 2.0 2.8 V6 Saloon

Notice: No Top Mount Included.

Application:

For Vauxhall Insignia 2008-2017

Saloon, Hatch & Tourer/Estate. 2WD Only.

1.4, 1.6, 1.6 Turbo, 1.6CDTi, 1.8, 2.0 Turbo, 2.0 BiTurbo, 2.0CDTi, 2.8 V6 Turbo

Not for OPC

Specification:

Front Lowering: 30-60mm (depending on the vehicle models)

Rear Lowering: 30-55mm (depending on the vehicle models)

Damping : fixed damping

Spring Rate Front: 3.5 kg/mm (196 lbs/in)

Spring Rate Rear: 4.5 kg/mm (252 lbs/in)

Front spring inner diameter: 63-74 mm

Rear spring inner diameter: 53-64 mm

Spring length Front: 230 mm

Spring length Rear: 225 mm

Top mounts: Front and rear OE top mounts required

Spring Preload advised: 7-10 mm

Shock Type: Twin Tube

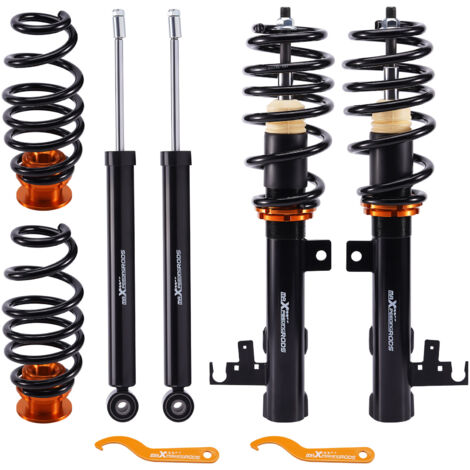

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Feature:

1. Lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Notice:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
