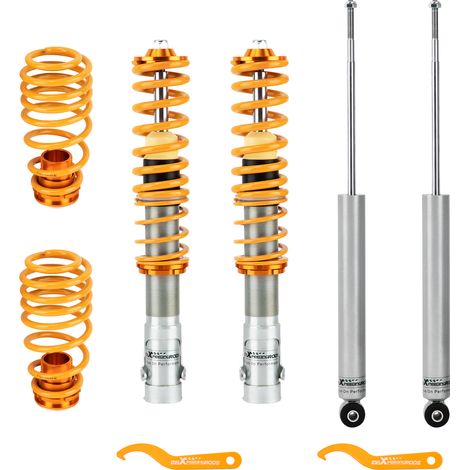

Coilovers Suspension Kit for VW POLO 6N 6N2 mk3 6GTI SDI Seat Ibiza Cordoba 6K

Notice:No Top Mount Included. Modification Required If You Use OE Top Mount

Applications

For VW Polo MK3 6N2 1999-2001

For VW Polo Classic MK3 6V2, 6KV 1995-2009

For VW Polo Estate MK3 6V5, 6KV 1997-2001

For Seat Cordoba 6K1, 6K2 1993-2002

For Seat Cordoba Vario 6K5 1996-2002

For Seat Ibiza MK2 6K1 1993-2002

Specifications

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Damping : fix rate damping

Top mounts: Front and rear OE top mounts required

Spring rate Front: 3.5 kg/mm (196 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 64-83 mm

Rear spring inner diameter: 62 mm

Spring length Front: 239 mm

Spring length Rear: 200 mm

Helper spring rate Rear: 1 kg/mm (56 lbs/in)

Helper spring length Rear: 102 mm

Spring Preload advised: 7-10 mm

Twin Tube

Quantity

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Features

1.  0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Notice

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
