Coilovers Suspension Kit for Subaru Legacy MK4 BL BP Saloon Estate 2003-2009

Applications

For Subaru Legacy MK4 BL BP Saloon / Estate 2003-2009

For Subaru Legacy 2005-2009 USA BL9 BP9
For Subaru Legacy B4 2003.05-2009.04 JPN BLE BL5
For Subaru Legacy Touring Wagon 2003.05-2009.04 JPN BP5 BPE

Specifications

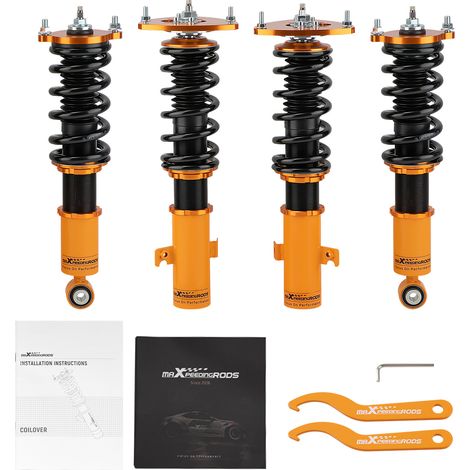

Quantity: 2 pieces front + 2 pieces rear , Spanner as shown in the picture

Adjustable height: lowering 1-3 inch

Damping: 24 levels rebound damping adjustable

Front Top mounts: pillow ball top mounts with camber plate

Rear Top mounts: Rubber

Adjustable camber plate: Front only

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 12 kg/mm (672 lbs/in)

Spring length Front: 200mm

Spring length Rear: 190mm

Coilover overall length Front: 460mm-550mm

Coilover overall length Rear: 400mm-450mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Warranty: 2 year warranty for any manufacturing defect

Feature

* Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
* A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
* Camber plate top mounts help to eliminate the need for a separate camber kit.
* Pillow ball top mount - It improves the steering feel and response.
* Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
* Twin-Tube structure allows sufficient stroke within the shock absorber.
* Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
* Separate height adjustment does not affect damper stroke.
* Height can be adjusted with coilovers installed on the vehicle.
* High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
* Height Adjustment tools included.
* Full rebuildable.

Notice

* Instruction Included. (If not, we could offer you the E-book version. ); Professional installation & alignment suggested.
