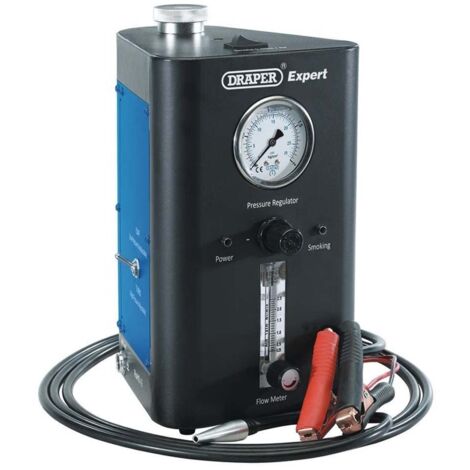

Draper Expert Turbo/EVAP Smoke Diagnostic Machine with Pipe Vacuum Leak Detector – Model 94079

Description

• This professional smoke diagnostic machine is designed for testing turbo and EVAP (Evaporation Emission Control System) leaks in vehicles. It generates smoke using mineral oil and workshop air to help identify leaks quickly and accurately. The device is compact, lightweight, and portable, making it suitable for mechanics, breakdown technicians, and workshops. It features easy switching between turbo and EVAP modes, with adjustable pressure controls and clear pressure gauges for precise operation. The machine is equipped with safety features, including a safety cut-off, to prevent damage during use.

Technical Specifications

• Power Supply: 12V DC
• Turbo Mode Output Pressure: 3-20 PSI
• EVAP Mode Output Pressure: 0.75 PSI
• Operating Temperature: 0°F to 140°F (-17°C to 60°C)
• Generator Protection Temperature: 239°F
• Hose Length: 3 meters (10 feet)
• Weight: 4.5 kg
• Dimensions: 280 x 185 x 165 mm

Compatibility and Accessories

• Compatible with a wide range of petrol and diesel vehicle systems, including turbos, intercoolers, manifolds, brake boosters, EGR valves, brake vacuum hoses, cooling systems, and air and water leaks.
• Supplied with accessories including:
• • 23 plastic plugs for sealing various openings
  • 31-81mm cone adaptor
  • Battery cable with crocodile clips
  • Smoke outlet hose
  • Air intake adaptor
  • Hand inflatable block-off bladder
  • Hook
  • EVAP service kit
  • Accessory storage case

Installation

• Connect the device to a 12V vehicle battery using the supplied battery cable with crocodile clips.
• Attach the appropriate adaptor or plug to the vehicle’s opening to be tested.
• Ensure all connections are secure and the device is placed on a stable surface.

Usage

• Switch between smoke mode and
