General description

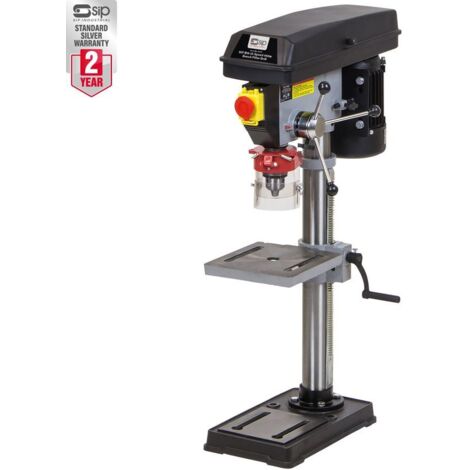

The SIP B16 12-Speed 450w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods, and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling. Longevity and safety are paramount to this pillar drill, featuring integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for home and small workshop applications with limited floor space.Technical specifications
- Input Voltage: 230v (13A)
- Motor Power: 450w
- No. of Speeds: 12 speeds
- Speed Range: 300rpm - 2550rpm
- Drill Bit Size: 3mm - 16mm
- Max. Drilling Capacity: 16mm
- Spindle Taper: B16
- Table Size: 195mm x 200mm
- Base Size: 340mm x 205mm
- Column Diameter: Ø 58mm
- Swing: 260mm
- Height: 840mm
- Spindle Travel: 60mm
- Collar Diameter: Ø 58mm
- Max. Distance: 350mm (chuck to table) / 470mm (chuck to base)
- Dimensions: L34 x W20 x H84 cm
- Weight: 28 kg
Usage
Applications include pilot, blind, and general drilling, small bracketry, and home and small workshop metalwork and woodwork.Other information
- Safety interlock switch prevents accidental start-up while adjusting the motor belt.
- Fitted with a drilling depth stop for accurate repetitive or blind hole drilling, minimizing material wastage.
- High-power brushless induction motor delivers consistent high-quality drilling.
- 2-year standard silver warranty*
