General description

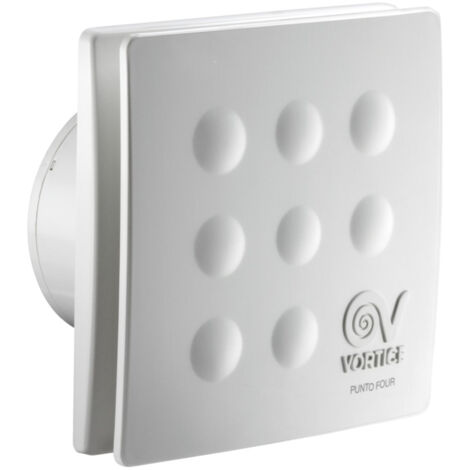

The Punto Four MFO 90 extractor fan is designed for efficient air extraction from indoor spaces directly to the outside. It features a compact design and is suitable for various mounting options, making it versatile for different installation needs.Technical specifications
- Voltage: 220-240 Volt ~ 50 Hertz
- Housing colour: white
- Housing material: UV-resistant ABS plastic
- Nominal size: 90 mm
- Max. wattage: 14 W
- Max. current consumption: 0.08 A
- Revolutions per minute: 2500
- Speed levels: 1
- Max. airflow rate: 65 m³/h
- Total pressure Pmax: 25 Pa
- Sound pressure level Lp-3m: 29.6 dB(A)
- Max. temperature for continuous operation: 50°C
- Protection code: IPX4
- Protection class: II
- Weight: 0.55 kg
- Thermal overload protection
- Integral shutter flap prevents cold air from infiltrating
Compatibility and accessories
- Optional condensation gasket for ceiling installation kit (sold separately)
- Available types: Punto Four MFO 90 (standard) and Punto Four MFO 90 T (time delay adjustable 2-30 min)
Installation
- Mounting options: wall mounting (horizontal, vertical, diagonal position)
Other information
