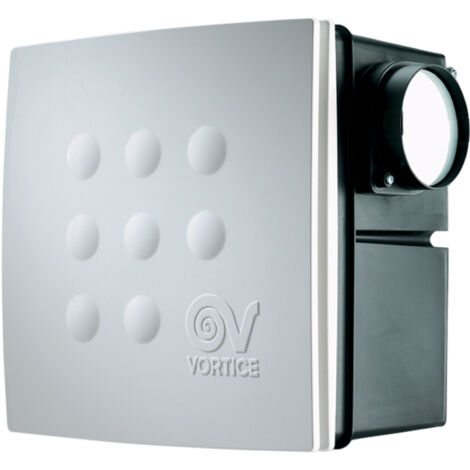

Centrifugal Duct Fan Quadro Micro I T UP

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Housing colour: white
Housing material: ABS plastic, non-yellowing, UV-resistant
Nominal diameter: 100 mm
Speed levels: 2
Wattage: 20 / 27 W
Current consumption: 0.1 / 0.12 A
Revolutions per minute: 1010 / 1450
Airflow rate: 75 / 100 m³/h
Total pressure Pmax: 196 / 218 Pa
Sound pressure Lp-3m: 26.3 / 34.3 dB(A)
Max. temperature for continuous operation: 50°C
IP code: IPX4
Insulation class: II
Diameter duct connector: 92 mm
Dimensions front cover: 258 x 258 x 34 mm
Total depth: 152 mm
Total depth with duct connector: 178 mm
Weight: 1.9 kg
Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time
Washable synthetic fibre fleece filter
Thermal overload protection
Self-lubricating bush bearings
Non-return valve prevents cold air from infiltrating once the fan is turned off
Mounting options: flush-mounted, any position
Exhaust nozzles on the side and back make it possible to connect a second room to the fan

Features

Brand
VORTICE
Colour
White
Shape
Rectangular
Warranty
2 year(s)
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Certification body
CE
Aerator control type
Switch
With timer
Yes
Integrated non-return valve
Yes
Duct diameter
100 mm
Availability of spare parts
0 year(s)
Height
20 cm
Silent model
Yes
Room type
Bathroom
Weight
100 g
For bathroom
Yes
Power
27 W
Noise level
34.3 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
220 V
Type of lawn aerator
Classic
Type of installation method
Mortise mount
Power indicator light
Yes
ManoMano Reference
ME6404430
MMID
159452617382
Product code
12018
EAN
8010300120188
