General description

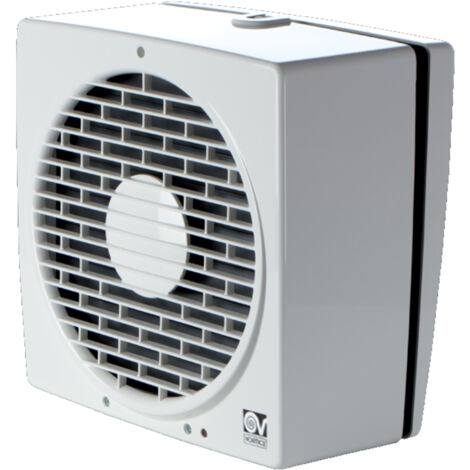

The Vario 230/9 AR-Q Automatic window fan is designed for efficient air circulation, featuring an automated internal shutter flap that prevents cold air from entering when the fan is turned off. It is constructed from impact-resistant and UV-resistant ABS plastic, ensuring durability and longevity.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Colour: White
- Material: Impact-resistant, UV-resistant ABS plastic
- Nominal size: 230 mm
- Speed levels: 1
- Wattage: 26 W
- Current consumption: 0.13 A
- Revolutions per minute (supply air): 1080
- Revolutions per minute (exhaust air): 790
- Max. airflow rate (supply air): 310 m³/h
- Max. airflow rate (exhaust air): 480 m³/h
- Sound pressure level (Lp-3m): 35.6 dB(A)
- IP rating: IPX4
- Protection class: II
- Max. ambient temperature: +50°C
- Weight: 3.45 kg
- Self-lubricating ball bearings
- Optional CR controllers for reversing and speed control
Compatibility and accessories
- Optional CR controllers for reversing and speed control
Installation
- Model dimensions: A: 294 mm, B: 297 mm, C: 31 mm, D: 130 mm, E min.: 2 mm, E max.: 38 mm, Ø Cutout: 257-262 mm
Usage
- Ideal for improving air circulation in various indoor spaces
- Automated shutter flap enhances energy efficiency
