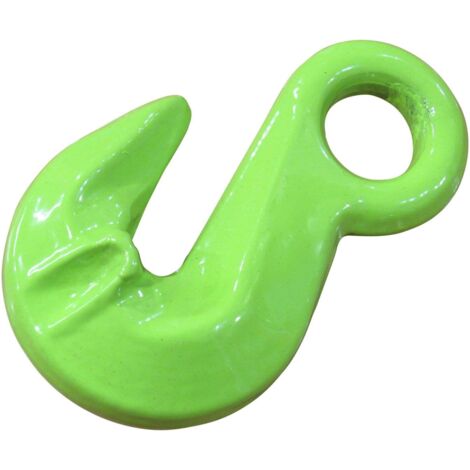

Eye Grab Hook Grade 100 13MM (G100 6.7 Ton Lifting Chain Sling Shortening Clutch)

Name: Eye Grab Hook Grade 100 13MM (G100 6.7 Ton Lifting Chain Sling Shortening Clutch)
Brand: SECUREFIX DIRECT
SKU: SFG10EGH13
Price: 18.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Eye Grab Hook Grade 100 is designed for heavy-duty lifting applications, specifically suited for 13MM chain sizes. Made from Grade 100 material, these hooks are lighter yet stronger than Grade 80 counterparts, ensuring high performance in the lifting gear industry. The hooks are primarily used in conjunction with chain slings, allowing users to shorten the chain to meet specific lifting requirements.

Technical specifications

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor Of Safety: 4:1

Conforms to: ASTM A952

Available Product Codes and Specifications:

Product Code: SFG10EGH06 - SWL: 1.5 Tonne, A: 13.5 MM, B: 46 MM, C: 73 MM, D: 7.5 MM, E: 9 MM, F: 22 MM

Product Code: SFG10EGH08 - SWL: 2.5 Tonne, A: 18 MM, B: 62 MM, C: 93 MM, D: 11 MM, E: 9 MM, F: 29 MM

Product Code: SFG10EGH10 - SWL: 4 Tonne, A: 21 MM, B: 82 MM, C: 126 MM, D: 12.8 MM, E: 15 MM, F: 42.5 MM

Product Code: SFG10EGH13 - SWL: 6.7 Tonne, A: 27.5 MM, B: 105.5 MM, C: 160 MM, D: 17 MM, E: 17 MM, F: 52 MM

Product Code: SFG10EGH16 - SWL: 10 Tonne, A: 30 MM, B: 107 MM, C: 168 MM, D: 21 MM, E: 21 MM, F: 70 MM

Usage

These high-quality grab hooks are mainly used in the lifting gear industry for chain slings. By attaching a chain to the grab hook, users can effectively shorten the chain to suit their lifting needs.

Other information

*Test Certificate Will Be Supplied Via Email*
*Please Note We Supply A Huge Variety Of Lifting Gear*
*FREE DELIVERY*

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Steel
Colour
Light green
Maximum load
6700 kg
