Huepar HX04CG 4x360° Green Laser Cross Line Laser with LCD Display, ±3.5° Self-Leveling, 5200mAh Battery, IP54, Type-C Charging, Pulse Mode, Lifting Base, incl. Case & Accessories
You may also like
Compare with similar items
Often purchased together
Product information
Description

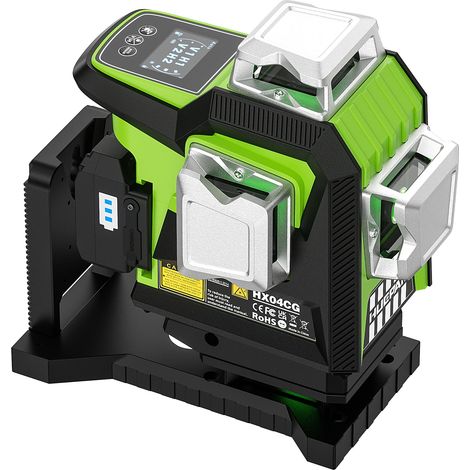

The Huepar HX04CG is a state-of-the-art cross-line laser with four bright green 360° laser lines, a large LCD display, and intelligent self-leveling – ideal for precise alignment in construction, interior finishing, woodworking, or renovations. Its high accuracy, quick setup, and robust construction make it the perfect choice for professionals and ambitious DIYers.
🔧 Top Features & Benefits at a Glance
4 x 360° Green Lasers with High Visibility
Ultra-bright laser lines for complete room coverage – ideal for walls, floors, ceilings, and corners.
±3.5° Self-Leveling in ≤3 Seconds
Automatic compensation for inclined surfaces for precise results. Manual mode available for angled projections.
LCD Display with Real-Time Status
All information at a glance: battery level, laser status, pulse mode, and tilt indicator. Easy to use, even for beginners.
Three adjustable brightness levels
Suitable for any environment: from dark indoor spaces to bright outdoor use in direct sunlight.
Pulse mode for outdoor use
When combined with a Huepar laser receiver (sold separately), the range extends up to 60m – ideal for outdoor construction sites.
5200mAh battery with Type-C charging port
Up to 6 hours of runtime with all lines activated. Also supports alkaline batteries for maximum flexibility.
Rugged design with IP54 protection
Dustproof and splashproof, suitable for construction sites and harsh environments. Metal housing provides added durability.
Universal compatibility
With 1/4"-20 and 5/8"-11 threads – fits all standard tripods and mounts.
📐 Technical Specifications (as running text)
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power
Model: Huepar HX04CG
Laser lines: 4 x 360° green lasers, bright & highly visible
Laser wavelength: 505–520nm
Laser line width: approx. 2mm
Horizontal/Vertical accuracy: ±2mm/10m (±1/13 in at 33ft)
Self-leveling range: ±3.5°
Leveling time: ≤3 seconds
Power supply: 3.7V / 5200mAh Li-ion battery
Charging port: USB Type-C, charging time approx. 3.5 hours
Operating time: Up to 6 hours with all lines
Operating temperature: -10°C to +50°C
Storage temperature: -20°C to +70°C
Range:
– Visible: approx. 30m (98ft)
– With receiver: 40–60m (130–197ft)
Mounting thread: 1/4"-20 & 5/8"-11 compatible
Protection rating: IP54 – dustproof and splashproof
Application: Interior finishing, construction, woodworking, DIY projects
📦 Scope of delivery
1x Huepar HX04CG laser device
1x 3.7V / 5200mAh Li-ion battery (with charging port)
1x 5V/2A AC adapter
1x USB Type-C charging cable (1m, black)
1x Laser target plate
1x Lifting base
1x Dry cell battery box (backup option)
1x Multilingual user manual
1x Robust plastic case
1x Huepar shipping box (Kraft cardboard)
⚠️ Safety Notice
Never point the laser beam directly into your eyes – risk of eye injury!
Features
- BrandHUEPAR
- Length37 cm
- Range60.96 m
- Warranty2 year(s)
- Number of laser lines4
