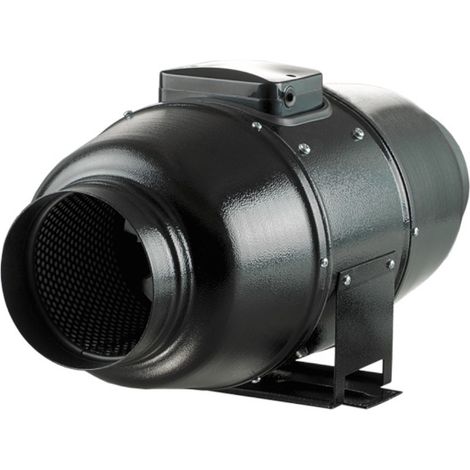

Inline fan TT Silent M 160 T up to 555 m³/h

Dimensions and technical details

• 220-240 V ~ 50/60 Hz
• Housing colour: black
• Housing material: powder-coated steel
• 50mm mineral wool layer for sound and heat insulation
• Nominal size: 160 mm
• Wattage: 52 W
• Current consumption: 0.23 A
• Revolutions per minute: 2645
• Airflow rate: 555 m³/h
• Sound pressure Lp-3m: 33 dB(A)
• Height: 260 mm
• Width: 247 mm
• Width mounting bracket: 274 mm
• Length: 580 mm
• Diameter duct connection : 157 mm
• Max. temperature for continuous operation: 60°C
• IP code: IPX4
• Weight: 6.1 kg
• Adjustable shut-off timer (2 - 30 min): fan turns off after expiration of the pre-set time
• Ball-bearing motor
• Mounting options: any position
• Motor unit can be removed quickly and easily for cleaning and maintenance
• Application: ventilation systems requiring high pressure and low noise level
• Ideal for air extraction in damp rooms of residential and commercial properties
