Lifting Clevis Grab Hook 10MM Grade 100 (4 Ton Shortener Clutch Chain Hook 4T)

Name: Lifting Clevis Grab Hook 10MM Grade 100 (4 Ton Shortener Clutch Chain Hook 4T)
Brand: SECUREFIX DIRECT
SKU: SFG10CGH10
Price: 16.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

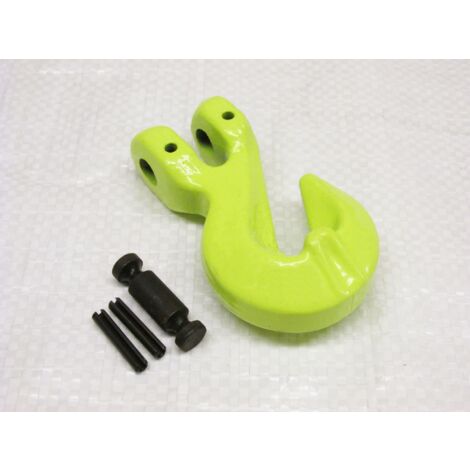

Clevis Grab Hook designed for 10MM chain size, made from high-quality Grade 100 material. This hook is primarily used in the lifting gear industry for chain slings, allowing for efficient shortening of chains to meet specific lifting requirements. The product features a light green finish, although the color may vary.

Technical specifications

Material: Grade 100

Factory of Safety: 4:1

Conforms to: ASTM A952

Available Product Codes and Specifications:

Product Code: SFG10CGH06 - SWL: 1.5 Tonne, A: 45 MM, B: 17 MM, C: 8 MM, D: 8 MM, E: 25.5 MM, F: 74 MM, G: 8 MM, H: 7.5 MM

Product Code: SFG10CGH08 - SWL: 2.5 Tonne, A: 53 MM, B: 20 MM, C: 11 MM, D: 9 MM, E: 30 MM, F: 91 MM, G: 9.5 MM, H: 10.5 MM

Product Code: SFG10CGH10 - SWL: 4 Tonne, A: 73 MM, B: 30 MM, C: 12.5 MM, D: 11.5 MM, E: 42 MM, F: 123 MM, G: 13 MM, H: 13 MM

Product Code: SFG10CGH13 - SWL: 6.7 Tonne, A: 91 MM, B: 44 MM, C: 16 MM, D: 14.5 MM, E: 56 MM, F: 162 MM, G: 16 MM, H: 14.5 MM

Product Code: SFG10CGH16 - SWL: 10 Tonne, A: 101 MM, B: 45 MM, C: 18 MM, D: 18.5 MM, E: 74 MM, F: 185 MM, G: 19.5 MM, H: 19.5 MM

Usage

These hooks are used in conjunction with chain slings. By attaching a chain to the grab hook, it allows for the chain to be shortened to suit specific lifting needs.

Other information

*Test Certificate will be supplied via email.*

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
4000 kg
Material
Two-material
Weight
100 g
ManoMano Reference
ME27133052
MMID
228102339447
Product code
SFG10CGH10
EAN
0600988489479
