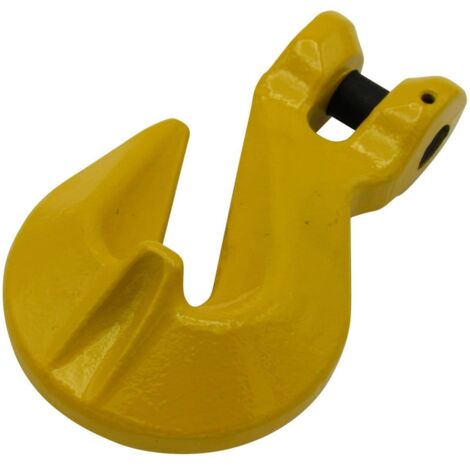

Lifting Clevis Grab Hook 10MM Grade 80 (3.15 Ton Shortening Clutch Chain Hook 3.15T)

Name: Lifting Clevis Grab Hook 10MM Grade 80 (3.15 Ton Shortening Clutch Chain Hook 3.15T)
Brand: SECUREFIX DIRECT
SKU: SFYASCGH10
Price: 9.65 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

The Lifting Clevis Grab Hook is designed for use with 10MM chains and is made from high-quality Grade 80 (G80) material. This hook is primarily utilized in the lifting gear industry, particularly for chain slings, allowing for effective shortening of chains to meet specific lifting requirements.

Technical specifications

Chain Size: 10MM

Material: Grade 80 (G80)

Finish: Yellow (may vary)

Factor of Safety: 4:1

SWL (Tonne): 3.15

Dimensions:

A (MM): 74

B (MM): 29

C (MM): 12.5

D (MM): 12.5

E (MM): 46

F (MM): 125

G (MM): 12.5

H (MM): 13

Compatibility and accessories

This grab hook is compatible with chain slings and is designed to be used in conjunction with them.

Usage

To use the grab hook, attach the chain to the hook, which will then shorten the chain to suit your lifting needs.

Other information

Conforms to: BS EN 1677. A test certificate will be supplied via email.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
3150 kg
Material
Steel
Weight
100 g
ManoMano Reference
ME27132917
MMID
830617258416
Product code
SFYASCGH10
EAN
0600988486324
