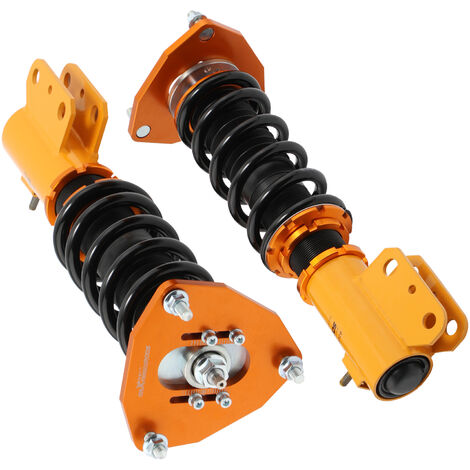

MaXpeedingrods Coilover For Mitsubishi Lancer Mirage CS6A CS7A 2002-06 Damper

Applications

For Mitsubishi Lancer ES CS6A FWD 2002-2006

For Mitsubishi Lancer OZ CS6A FWD 2002-2006

For Mitsubishi Lancer RALLIART CS7A FWD 2004-2006

Please notice that these coilovers will not fit evolution version

Specifications

Adjustable height: lowering 1-3 inch

Damping: 24 levels rebound damping adjustable

Top mount: front pillow ball; rear rubber

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Spring length Front: 200mm

Spring length Rear: 160mm

Coilover overall length Front: 430mm-515mm

Coilover overall length Rear: 390mm-430mm

Spring Preload: 7-10 mm

Shock type：Twin tube


Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3.Camber plate top mounts help to eliminate the need for a separate camber kit.
4.Twin-Tube structure allows sufficient stroke within the shock absorber.
5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9.Steel shock bodies with special surface treatment to improve the durability.
10. Full rebuildable

Notice

* Instruction Included. (If not, we could offer you the E-book version. ); Professional installation & alignment suggested.

* Please check our store for other auto parts you may be interested in.

* Please feel free to contact us for whatever we can help
