NuaSol - Trapezoidal sheet metal roof mounting set extension
[Compatibility] Suitable for solar modules with a height of 30 and 35 mm! Therefore compatible with all common solar panels with a height of 30 and 35mm.
[Trapezoidal roof] This mounting set from NuaSol offers you convenient and uncomplicated mounting of your solar modules on a trapezoidal sheet metal roof.
[Aluminium profile] The profiles are made of high-quality, robust AL6005-T5 aluminium and have an anti-slip base. The material is weather and corrosion resistant.
[Simple installation] The end clamps are made of AL6005-T5 aluminium and are clipped into the aluminium profile and tightened. The SUS304 screws supplied have a sealing ring to prevent water ingress.
[Everything included] You receive an extension set for the NuaSol trapezoidal sheet metal roof mounting set and can extend your system with additional solar modules. Contents: 2 mounting rails (400mm), 2 centre clamps and 8 wood screws.
NuaSol - DoItYourself trapezoidal sheet metal roof mounting set extension
NuaSol offers you various mounting materials for attaching your mini PV system or balcony power station. From hanger bolts and roof hooks to Z-brackets, you will find the right mounting material for every type of installation.
The sheet metal roof mounting set contains all the components you need to mount your solar modules on the roof of your house.
The preparation
- 1: Attach short profiles
2: Attach centre clamps to the ends of the profile
3: Position solar modules
4: Tighten clamps
Everything included!
This comprehensive trapezoidal sheet metal roof mounting set for solar modules contains all the components needed to mount a solar module on the sheet metal roof.
Simple installation
- 1: Prepare profiles
2: Hook in solar modules
3: Tighten centre clamps
Suitable for solar modules with a height of 30 and 35 mm!
Details
- Profile dimensions: 400 x 75 x 26.5 mm
Centre clamp dimensions: 70 x 39.4 x 49 mm
Dimensions screws: 5.5 x 25
Aluminium profile
The aluminium profile made of high-quality AL6005-T5 impresses with its weather resistance and offers space for a variety of solar panel types. EDPM underlays are located underneath the profile.
Screw set
The aluminium profiles are easily attached to the trapezoidal sheet metal roof using the 8 stainless steel wood screws. The screws have an EDPM seal underneath the head to prevent water from running into the sheet metal roof.
Centre bracket
The middle clamp is the counterpart to the end clamp and allows you to attach two solar modules to an aluminium profile to save space.
Compatible with trapezoidal roof mounting set
With this extension set, you can add more solar modules to your PV system with little effort and in a few simple steps.
Technical data and scope of delivery
Technical data
- Profile dimensions: 400 x 75 x 26,5 mm
- Profile material: Aluminium, AL6005-T5
- Profile thickness: 1.5 mm
- Screw dimensions: 5.5 x 25 mm
- Screw material: SUS410
- Centre clamp dimensions: 70 x 39,4 x 49 mm
- Centre clamp material: AL6005-T5 + SUS304
- Centre clamp compatible with module height: 30 & 35 mm
- Wind load max. 30 m/s
- Snow load max. 1.7 KN/m2
- Load capacity m² max. 1.7 KN/m2
Scope of delivery

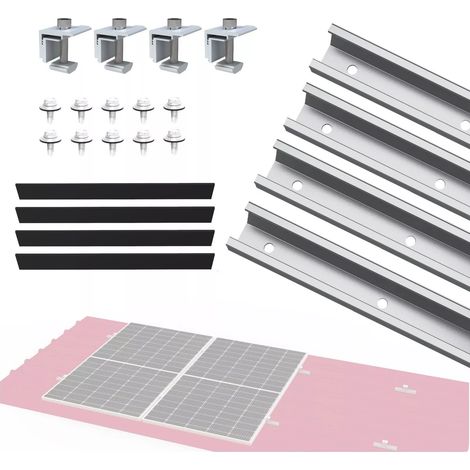

- 2x mounting rail 400 mm
- 2x centre clamp
- 8x wood screws
Features
- BrandNUASOL
- Pcs per pack4
- MaterialAluminium
- Length20 cm
- Weight800 g
- Solar panel accessory typeFixing
- ManoMano ReferenceME84203857
- MMID923905470631
- Product code4252023116220
- EAN4252023116220
