Rear Coilovers for VW Golf mk1 Scirocco 1975-1984 Suspension Shock Spring Kit

Application:

for VW Golf MK1 / Rabbit models 1975-1984

for VW Jetta MK1 models 1980-1984

for VW Scirocco MK1 models 1974-1981

for VW Scirocco MK2 models 1981-1992

Specification:

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Damping : fixed damping

Top mounts: OE top mounts required

Spring rate Rear: 8 kg/mm (448 lbs/in)

Rear spring inner diameter: 62 mm

Rear Spring length : 170 mm

Helper spring rate Rear: 1 kg/mm (56 lbs/in)

Helper spring length Rear: 102 mm

Spring Preload advised: 7-10 mm

Shock type: Twin tube

Warranty: 2 year

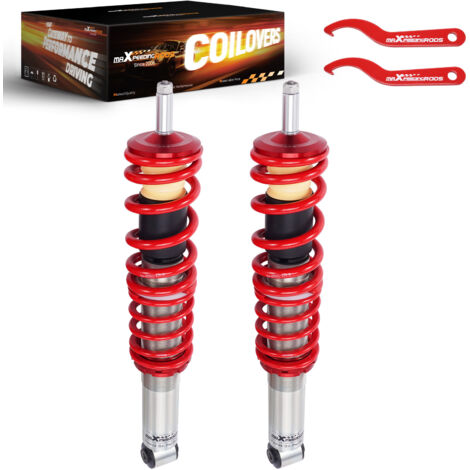

Package included

2x Rear coil-overs
2x C spanners

Feature:

1.  Lower height adjustable (depends on vehicle models)
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
