General description
The CasaFan AZTVVA Stainless Supply and Exhaust Air Valve is designed for efficient air transportation in rooms without fire protection requirements. Made from high-quality stainless steel with a brushed finish, this versatile valve can be used both indoors and outdoors. It features a circular foam gasket that prevents false excess air infiltration, ensuring clean air flow.Technical specifications
- Material: Stainless steel with brushed finish
- Model options: AZTVVA 100, AZTVVA 125, AZTVVA 150, AZTVVA 160, AZTVVA 200
- Application: Transportation of air in rooms without fire protection requirements
- Installation compatibility: Pipes or wall openings with a minimum thickness of 2 cm
- Low sound pressure level due to valve disc with sound absorber

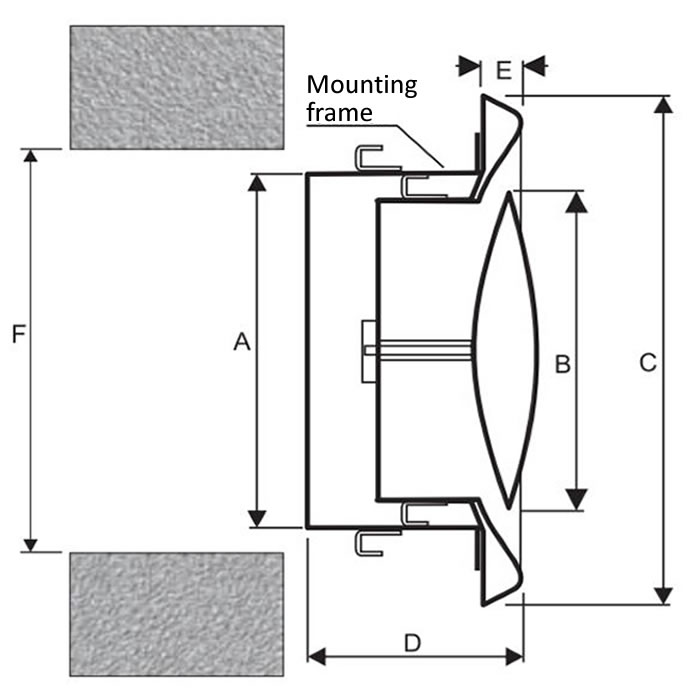

| Type | NW | A (mm) | Ø B (mm) | Ø C (mm) | Ø D (mm) | Ø E (mm) | Ø F (mm) |
|---|---|---|---|---|---|---|---|
| AZTVVA 100 | 100 | 100 | 90 | 140 | 50 | 6 | 100 - 108 |
| AZTVVA 125 | 125 | 125 | 120 | 170 | 50 | 9 | 125 - 135 |
| AZTVVA 150 | 150 | 150 | 145 | 218 | 63 | 9 | 150 - 155 |
| AZTVVA 160 | 160 | 160 | 145 | 218 | 63 | 9 | 160 - 165 |
| AZTVVA 200 | 200 | 200 | 202 | 298 | 80 | 14 | 200 - 210 |
Installation
The CasaFan AZTVVA air valve is easy to install, featuring clamping springs for secure insertion into pipes or wall openings. A mounting ring is included for installation in sheet metal ducts, thin panels, or direct connection to flexible tubes. The design compensates for bumps on walls and pipes that are plastered too deep.Usage
This air valve is ideal for controlling airflow in various applications, allowing users to adjust the airflow by turning the disc. It is suitable for both supply and exhaust air systems.Other information
