General description

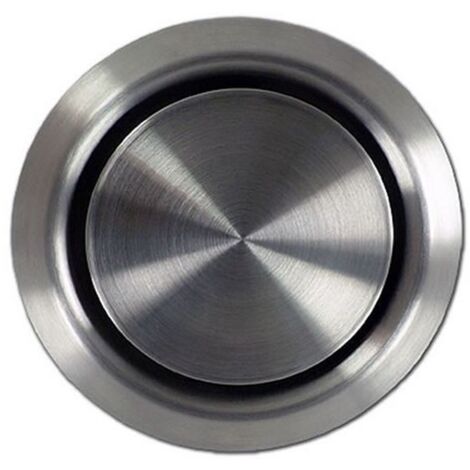

The CasaFan AZTVVA Stainless Supply and Exhaust Air Valve is designed for efficient air transportation in rooms without fire protection requirements. Made from high-quality stainless steel with a brushed finish, this versatile valve can be used both indoors and outdoors. It features a circular foam gasket that prevents false excess air infiltration, ensuring clean air circulation.Technical specifications
- Material: Stainless steel with brushed finish
- Model options: AZTVVA 100 to AZTVVA 200
- Application: Transportation of air in rooms without fire protection requirements
- Installation compatibility: Pipes or wall openings with a minimum wall thickness of 2 cm
- Low-noise operation: Valve disc with sound absorber
- Adjustable airflow: Turning the disc allows for airflow adjustment
| Type | NW | A (mm) | Ø B (mm) | Ø C (mm) | Ø D (mm) | Ø E (mm) | Ø F (mm) |
|---|---|---|---|---|---|---|---|
| AZTVVA 100 | 100 | 100 | 90 | 140 | 50 | 6 | 100 - 108 |
| AZTVVA 125 | 125 | 125 | 120 | 170 | 50 | 9 | 125 - 135 |
| AZTVVA 150 | 150 | 150 | 145 | 218 | 63 | 9 | 150 - 155 |
| AZTVVA 160 | 160 | 160 | 145 | 218 | 63 | 9 | 160 - 165 |
| AZTVVA 200 | 200 | 200 | 202 | 298 | 80 | 14 | 200 - 210 |
Compatibility and accessories
- Includes a mounting ring for installation in walls, panels, or directly in ducts
- Compatible with flexible tubes
Installation
- Easy to install using clamping springs
- Can be mounted in sheet metal ducts or thin panels
- Universal design compensates for bumps on walls and pipes that are plastered too deep
Usage
- Ideal for supply and exhaust air applications
- Can be used in various environments, including outdoor settings
