T10171 Timing tool kit + Timing Chain Kit for VW Audi A1 A3 Seat Skoda AXU BAG

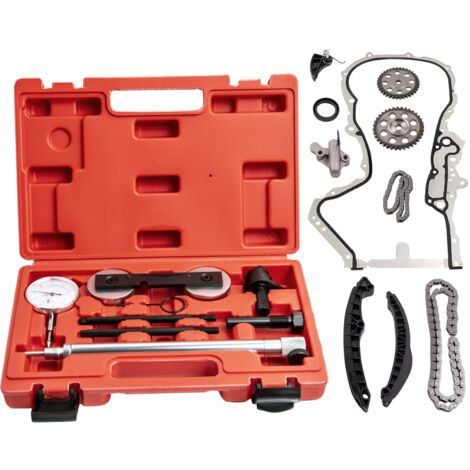

T10171 Timing Tool Kit FOR VW Audi A1 A3

Function:

For professional engine repair.
For the fitting and expansion of camshafts, change of the control chain, testing.
For adjusting the camshaft control times, renewing the cylinder head gasket, etc.

Application:

Motor setting tool set control chain for vague 1.2 1.4 1.6 TSI FSI TFSI + dial Gauge
For vague engines 1.2 L TSI:
For Audi A1, A3, A3 back and A3 convertible
For seat Altea, Altea XL, Ibiza, Ibiza Coupe, Leon and Toledo
For Skoda Fabia, Fabia Combi, Octavia, Rapid, Roomster and Yeti
For VW New Beetle, Caddy, for golf, for golf plus, for golf convertible, for golf variant, for Jetta, Polo and Touranium
For vague Motors 1.4 FSI:
For VW for Golf 4, for golf 5 and Polo 9N
For vague Motors 1.6 FSI:
For Audi A3, for VW for Golf, Passat and Touranium

Engine Code:

-AXU, Bag, BKG, BLF, BLN, BLP, BMY, BTS, BLG, BWK
-Cava, CAVB, Atrioventricular Canal, CAVD, CAVF, CAXA, CAXC and CDGA
-CBZA, CBZB, CBZC


OEM & PRRT NO.

All completely sorted in plastic cases
-Camshaft lock, to be used as OEM T10171
-Dial gauge holder, to be used as OEM T10170 (gauge holder with 274 mm total length, external thread M14 x 1.25 mm, for setting Upper dead center)
-Crank shaft lock, to be used as OEM T10340
-Hydraulic clamp lock, to be used as OEM T40011 (8 mm span, also for other use, for example for inclusion in magnetic base)
-Precision dial gauge for locating the piston OT (resolution: 0.01 mm/Measuring range: 0-8 mm/diameter: 41 mm)
-2x crank sprocket locking pin to use WieOEM T10341
(Two guide studs with 135 mm length, 24 mm long external thread M8 x 1.25 mm, hexagonal allen key width 6 mm)

Parcel including:

-Camshaft Lock
-Dial Gauge Holder
-Crank shaft locking
-Hydraulic CLAMP Lock
-Precision Dial Gauge
-2x crank sprocket locking pin
-Cam Shaft Locking

_____________________________________________________________________

Timing Chain Gasket Kits for 1.4 & 1.6 Engine

Application:

for Audi: A1 A3

For AUDI A1 1.4 TFSI CAXA 2010 122 BHP
For AUDI A1 1.4 TFSI CAVG CTHG CTJA 2011 185 BHP
For AUDI A1 Sportback 1.4 TFSI CAVG, CTHG , CTJA 2011 185 BHP
For AUDI A3 Sportback 1.6 TSI BLP , BLF 2004-2007 115 BHP
For AUDI A3 BAG BLP BLF 2003 - 2007 115 BHP

for Seat

For SEAT ALHAMBRA 1.4 TSI CAVA 2010 150 BHP
For SEAT IBIZA 1.4 TSI CAVF , CNUB , CTJB, CTHF 2009 150HP
For SEAT IBIZA 1.6 BTS 2008 105 BHP
For SEAT IBIZA V 1.6 LPG CNKA 2011 81HP
For SEAT IBIZA V SPORTCOUPE 1.4 TSI CAVF , CTJB , CNUB , CTHF 150 BHP 2009
For SEAT IBIZA V SPORTCOUPE 1.6 BTS 2008 105HP
For SEAT IBIZA V SPORTCOUPE 1.6 LPG CNKA 81 BHP 2001
For SEAT IBIZA V ST 1.4 TSI CAVF , CNUB, CTJB , CTHF 2012 150HP
For SEAT TOLEDO IV 1.4 TSI CAXA 2012 122 BHP
For SEAT TOLEDO IV 1.6 CFNA 2013 105 BHP

for Skoda
For SKODA FABIA 1.4 TSI RS CAVE , CTHE 180 BHP 2010-2014
For SKODA FABIA 1.6 BTS , CFNA 105 BHP 2007 - 2014
For SKODA FABIA Combi 1.4 TSI RS CAVE , CTHE 180 BHP 2010-2014
For SKODA FABIA Combi 1.6 BTS , CFNA 105 BHP 2007 - 2014
For SKODA OCTAVIA + COMBI 1.4 TSI CAXA 122 BHP 2008 - 2013
For SKODA OCTAVIA (1Z3) 1.6 TSI BLF 115 BHP 2004-2008
For SKODA RAPID 1.4 TSI CAXA 122 BHP 2012
For SKODA RAPID 1.6 CFNA 105 BHP 2012-
For SKODA RAPID Spaceback 1.2 CGPC 75 BHP 2012
For SKODA RAPID Spaceback 1.4 CAXA 122 BHP 2012
For SKODA RAPID Spaceback 1.6 CFNA 105 BHP 2012
For SKODA ROOMSTER 1.6 BTS, CFNA 105 BHP 2006 - 2015
For SKODA YETI 1.4 TSI CAXA 122 BHP 2010 -

for VW: EOS, Golf, Golf Plus, Jetta, Passat, Touranium

for VW SHARAN 1.4 TSI 150 BHP 05.2010- , Engine Code: CAVA

for VW SCIROCCO 1.4 TSI 122 BHP 08.2008- , Engine Code: CAXA, CMSB
for VW BEETLE 1.4 TSI 160 BHP 10.2011- , Engine Code: CAVD, CNWA, CTHD, CTKA

for VW BEETLE Convertible 1.4 TSI 160 BHP 12.2011- , Engine Code: CAVD, CNWA, CTHD, CTKA

for VW CC 1.4 TSI 160 BHP 11.2011- , Engine Code: CTHD

for VW CC 1.4 TSI MultiFuel 160 BHP 11.2011- , Engine Code: CKMA

for VW EOS 1.4 TSI 122 BHP 11.2007-08.2015 , Engine Code: CAXA

for VW EOS 1.4 TSI 160 BHP 05.2008-08.2015 , Engine Code: CAVD, CTHD

for VW EOS 1.6 TSI 115 BHP 06.2006-05.2008 , Engine Code: BLF

for VW GOLF PLUS 1.4 TSI 122 BHP 06.2007- , Engine Code: CAXA

for VW GOLF PLUS (5M1, 521) 1.4 TSI 160 BHP 06.2008-12.2013 , Engine Code: CAVD, CNWA

for VW GOLF PLUS (5M1, 521) 1.6 TSI 115 BHP 01.2005-05.2008 , Engine Code: BLF

for VW GOLF PLUS 1.4 TSI 140 BHP | 170 BHP 2006-2008  , Engine Code: BMY | BLG

for VW JETTA I SALOON 1.4 TSI 140 BHP | 170 BHP 2006-2010 , Engine Code: BMY | BLG

for VW JETTA III 1.4 TSI 122 BHP 05.2007-10.2010 , Engine Code: CAXA

for VW JETTA III 1.4 TSI 160 BHP 07.2008-10.2010 , Engine Code: CAVD

for VW JETTA IV 1.4 TSI 160 BHP 04.2011- , Engine Code: CAVD, CTHD

for VW JETTA IV (162, 163) 1.6 105 BHP 12.2011- , Engine Code: CLRA, CFNA

for VW JETTA IV 1.4 TSI 150 BHP 04.2011-07.2014 , Engine Code: CAVA

for VW Passat 1.4 TSI 122 BHP 05.2007-07.2010 , Engine Code: CAXA

for VW Passat 1.4 TSI EcoFuel 150 BHP 01.2009-07.2010 , Engine Code: CDGA

for VW Passat Variant 1.4 TSI 122 BHP 05.2007-11.2010 , Engine Code: CAXA

for VW Passat Variant 1.4 TSI EcoFuel 150 BHP 01.2009-11.2010 , Engine Code: CDGA

for VW Passat CC 1.4 TSI MultiFuel 160 BHP 01.2011-01.2012 , Engine Code: CKMA

for VW Passat 1.4 TSI 122 BHP 08.2010-12.2014 , Engine Code: CAXA

for VW Passat 1.4 TSI EcoFuel 150 BHP 08.2010-12.2014 , Engine Code: CDGA

for VW Passat 1.4 TSI 160 BHP 11.2012-12.2014 , Engine Code: CTHD

for VW Passat 1.4 TSI MultiFuel 160 BHP 11.2010-12.2014 , Engine Code: CKMA

for VW Passat Variant 1.4 TSI 122 BHP 08.2010-12.2014 , Engine Code: CAXA

for VW Passat Variant 1.4 TSI EcoFuel 150 BHP 08.2010-12.2014 , Engine Code: CDGA

for VW Passat Variant 1.4 TSI 160 BHP 11.2012-12.2014 , Engine Code: CTHD

for VW Passat Variant 1.4 TSI MultiFuel 160 BHP 11.2010-12.2014 , Engine Code: CKMA

for VW POLO (9N) 1.6 16V 105 BHP 05.2006-11.2009 , Engine Code: BTS

for VW POLO (6R, 6C) 1.4 85 BHP 06.2009- , Engine Code: CGGB, CDDA, CLPA

for VW POLO (6R, 6C) 1.4 GTI 180 BHP 05.2010- , Engine Code: CAVE, CTHE

for VW POLO (6R, 6C) 1.6 BiFuel 82 BHP 01.2011- , Engine Code: CNKA

OEM&PART NUMBER:

03C109158A, 03C109507AH, 03C109571B, 03C105209AC, 03C115230C

03C109507AE, 038103085E, 03C109469K, 03C109509P, 03C 109 158 A

03C 109 507 AH, 03C 109 571B, 03C 105 209 AC, 03C 115 230 C

03C 109 507 AE, 038 103 085 E, 03C 109 469 K , 03C 109 509 P

Engine Code:

115 BHP = BAG , BLF , BLP

122 BHP = CAXA

140 BHP = BMY

160 BHP = CAVD , CNWA , CTKA , CTHD

170 BHP = BLG

AXU,BAG, BKG, BMG, BMY, BWK,BLG, BLN, BLF, BLP

CAV, CAX, CDG, CKM, CMS, CNW, CTH, CTK, CNK, CFN, CLP, CDD, CDDA

CNKA, CAXA, CAXC, CKMA, CDGA, CAVE, CAVD, CAVC, CAVB, CAVA

CNWA,CTHA, CAVF, CAVG, CMSA CTJA, CNVA, CFNA, CLPA, CGGA

Parcel include:

1 x Timing chain
2 x Guides
1 x Tensioner
1 x Crank Gear
1 x Timing chain Gasket
1 x Front crank shaft oil Seal
1 x Oil pump chain sprocket
1 x Oil pump chain sprocket
1 x Oil Pump Chain
1 x Oil Pump Tensioner

Notes:
-It is an aftermarket tool, it serves as a replacement of the original tool.
-Instructions are not provided. We recommend a professional installation.
-If you have any questions, please feel free to contact us.
