General description

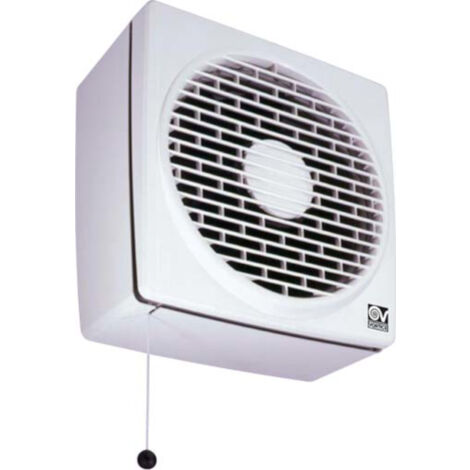

The Vario 150/6 P-Q window fan is designed for efficient ventilation, featuring a pull cord for easy operation. Its robust construction ensures durability and resistance to UV light, making it suitable for various environments.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Colour: white
- Material: impact-resistant, UV-resistant ABS plastic
- Nominal size: 150 mm
- Speed levels: 1
- Wattage: 18 W
- Current consumption: 0.1 A
- Revolutions per minute (supply air): 1340
- Max. airflow rate: 235 m³/h
- Sound pressure level (Lp-3m): 37.5 dB(A)
- IP rating: IPX4
- Protection class: II
- Max. ambient temperature: +50°C
- Weight: 2.07 kg
- Plain bearing
- Manual internal shutter flap prevents cold air from entering when the fan is off
- Thermal overload protection
- Pull switch operation: on/off
Other information
| Model | A | B | C | D | E min. | E max. | Ø Cutout |
|---|---|---|---|---|---|---|---|
| 150/6 | 215 mm | 218 mm | 31 mm | 97.5 mm | 2 mm | 38 mm | 185-190 mm |
