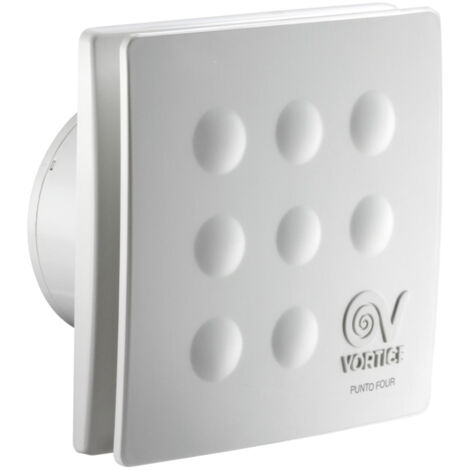

Extractor Fan Punto Four MFO 100

Name: Extractor Fan Punto Four MFO 100
Brand: VORTICE
SKU: 11145
Price: 109.19 GBP
Availability: InStock
Rating: 4.2 (15 reviews)

Sold by creoven

Product information

Description

General description

The Punto Four MFO 100 extractor fan is designed for efficient air extraction from indoor spaces directly to the outside. It features a sleek white housing made from UV-resistant ABS plastic, ensuring durability and longevity. This fan is ideal for various applications, providing a maximum airflow rate of 85 m³/h.

Technical specifications

Voltage: 220-240 Volt ~ 50 Hertz

Nominal size: 100 mm

Max. wattage: 15 W

Max. current consumption: 0.09 A

Revolutions per minute: 2400

Speed levels: 1

Max. airflow rate: 85 m³/h

Total pressure Pmax: 29 Pa

Sound pressure level Lp-3m: 33.1 dB(A)

Max. temperature for continuous operation: 50°C

Protection code: IPX4

Protection class: II

Weight: 0.55 kg

Thermal overload protection

Integral shutter flap prevents cold air infiltration

Compatibility and accessories

Available types: Punto Four MFO 100 (standard) and Punto Four MFO 100 T (time delay, adjustable 2-30 min)

Optional condensation gasket for ceiling installation kit (sold separately)

Installation

Mounting options: wall mounting (horizontal, vertical, diagonal position)

Usage

This extractor fan is used to efficiently extract air from indoor spaces to the outside, making it suitable for bathrooms, kitchens, and other areas requiring ventilation.

Other information

Features

Brand
VORTICE
Colour
White
Shape
Square
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
85 m³/h
Integrated non-return valve
Yes
Duct diameter
100 mm
Height
50 cm
Weight
500 g
Power
15 W
Noise level
33.1 dB
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Classic
Type of installation method
For mounting
ManoMano Reference
ME2035441
MMID
557461203111
Product code
11145
EAN
8010300111452

Customer reviews

4,2

/ 15 Reviews

Reviews verified by ManoMano

SStephane

Published on 22/12/2023, France

It met all my expectations

MManoMano Customer

Pro Customer

Published on 20/07/2026, Italy

Perfect

Ddaniele

Published on 15/09/2025, Italy

Product as described, easy to assemble

MManoMano Customer

Published on 17/11/2020, Italy

Product as described, without infamy and without praise. Does his duty. Good quality / price ratio. Slightly noisy. We will see how it behaves over time Manufacture worthy of the vortice brand.

2 people found this helpful

MMassimiliano

Published on 05/06/2020, Italy

To suck up humidity and steam in the kitchen or bathroom, as in my case, I think it's ideal. Good looking

2 people found this helpful

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
