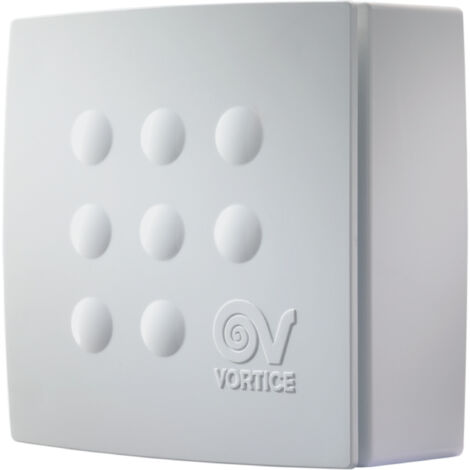

Centrifugal Duct Fan Quadro Micro 100 T

Product information

Description

General description

The Centrifugal Duct Fan Quadro Micro 100 T is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is UV-resistant and non-yellowing, ensuring durability and longevity.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Nominal diameter: 100 mm

Speed levels: 2

Wattage: 20 / 28 W

Current consumption: 0.1 / 0.13 A

Revolutions per minute: 1180 / 1600

Airflow rate: 65 / 90 m³/h

Total pressure Pmax: 157 / 216 Pa

Sound pressure Lp-3m: 32.9 / 39.2 dB(A)

Max. temperature for continuous operation: 50°C

IP code: IPX4

Insulation class: II

Diameter duct connector: 97 mm

Dimensions front: 239 x 239 x 97 mm

Total depth with duct connector: 117 mm

Weight: 1.8 kg

Other information

Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time

Washable synthetic fibre fleece filter

Thermal overload protection

Self-lubricating bush bearings

Non-return valve prevents cold air from infiltrating once the fan is turned off

Mounting options: surface-mounted, any position

Features

Brand
VORTICE
Colour
White
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
90 m³/h
Aerator control type
Timer
With timer
Yes
Integrated non-return valve
Yes
Duct diameter
100 mm
Height
23.9 cm
Silent model
Yes
Room type
Bathroom
Weight
1800 g
Power
28 W
Noise level
39.2 dB
Pcs per pack
1
Ball bearings
Yes
Voltage
230 V
Type of lawn aerator
Classic
Type of installation method
For mounting
ManoMano Reference
ME2035471
MMID
130240495256
Product code
11940
EAN
8010300119403

Customer reviews

4,0

/ 41 Reviews

Reviews verified by ManoMano

NNicolas

Published on 13/02/2023, France

Great product. Works perfectly. Adapts perfectly to the 80mn air outlet (format very difficult to find today). The air is quickly extracted from the bathroom and eliminates the bulk of the humidity. I recommend.

5 people found this helpful

MManoMano Customer

Published on 14/12/2022, France

Careful manufacture, modern and flattering appearance, powerful suction, effective non-return valve, easy assembly, a little noisier than expected.

1 person found this helpful

FFrancesco Giuseppe

Published on 26/01/2026, Italy

I thought it was more powerful, I had the same model for several years, I replaced it due to a fault, theoretically it should have identical features, instead I suffer from poor suction efficiency

1 person found this helpful

BBouhou

Published on 26/12/2025, France

Doesn't work

FFabio

Published on 03/04/2025, Italy

Excellent brand, one of the leaders in the sector. Aesthetically beautiful even if not exactly small in size!!! But this is due to the type of vacuum cleaner!

XXavier

Published on 18/11/2024, France

This extractor is of better quality than I expected, pleasant surprise. It is quite bulky but practical for an installation close to a wall corner, with its eccentric air outlet. It is really easy to install, you can select one extraction speed or another when connecting it. I installed mine at the fastest speed, it is a little noisier of course but it remains relatively discreet compared to other extractors which are much more deafening.

3 people found this helpful
