General description

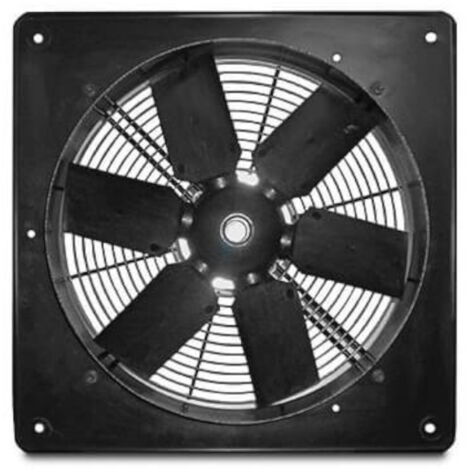

Heavy-duty wall-mounted fans designed for efficient air circulation and ventilation. The EQ HD M Series features an axial-flow construction and is suitable for various applications, including short ducts or direct extraction to the outside. With a maximum airflow of up to 12,000 m³/h, these fans are ideal for both industrial and commercial use.Technical specifications
- Voltage: 230 Volt ~ 50/60 Hertz
- Protection rating: IP55 (protected against water jets)
- Max. permissible temperature of transported air: +60°C
- Ball-bearing asynchronous motor, insulation class F
- Available models:
- EQ HD 25/4 M: 90 W, 0.6 A, 250 mm diameter, 1400 RPM, 1450 m³/h airflow, 120 Pa total pressure, 47 dB(A) sound pressure level, 5.0 kg
- EQ HD 30/4 M: 120 W, 0.7 A, 300 mm diameter, 1400 RPM, 2150 m³/h airflow, 145 Pa total pressure, 52 dB(A) sound pressure level, 6.1 kg
- EQ HD 35/4 M: 150 W, 0.9 A, 350 mm diameter, 1350 RPM, 2900 m³/h airflow, 155 Pa total pressure, 57 dB(A) sound pressure level, 7.4 kg
- EQ HD 40/4 M: 280 W, 1.4 A, 400 mm diameter, 1400 RPM, 4400 m³/h airflow, 190 Pa total pressure, 61 dB(A) sound pressure level, 9.5 kg
- EQ HD 50/4 M: 420 W, 1.9 A, 500 mm diameter, 1300 RPM, 7500 m³/h airflow, 195 Pa total pressure, 68 dB(A) sound pressure level, 10.6 kg
- EQ HD 50/6 M: 120 W, 0.4 A, 500 mm diameter, 800 RPM, 4400 m³/h airflow, 60 Pa total pressure, 56 dB(A) sound pressure level, 10.8 kg
- EQ HD 60/4 M: 650 W, 3.0 A, 600 mm diameter, 1400 RPM, 12,000 m³/h airflow, 200 Pa total pressure, 74 dB(A) sound pressure level, 16.4 kg
Compatibility and accessories
- Reversible operation when used with a compatible reversing switch (not included)
- Optional continuously-adjustable controller or 5-step controller available (sold separately)
Installation
Designed for wall mounting, ensuring stability and optimal airflow direction. Installation should be performed by a qualified technician to ensure proper setup and safety.Usage
Ideal for ventilation in industrial and commercial settings, particularly where high airflow is required. Suitable for use in environments with high ambient temperatures.Other information
