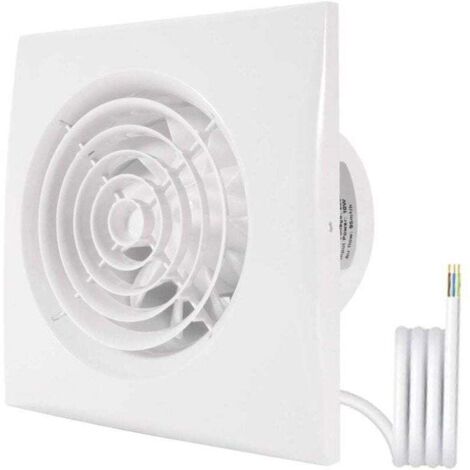

100mm Bathroom Air Extractor Fan - Wall/Ceiling Duct Fan

Product never used, packaging damaged during transport. Unopened product, repackaged in our warehouses, in perfect working order, warranty available.

Voltage: 220~240V / 50Hz, Airflow: 95 m³/h, Rotation Speed: 2100 RPM.

The body and blade are made of durable, corrosion-resistant ABS plastic.

The 100% copper motor with thermal protection can operate continuously without maintenance.

Ideal choice for kitchens, bathrooms, small garages, etc., keeping your home well-ventilated.

Product Description

Calculate the required airflow for ventilation

To determine the CFM requirement, determine the room size. Measure and multiply the length, width, and ceiling height of the room to determine the cubic length.

Use the multiplication factor of 0.13 and round up to the next "tenth" (.10).

Example 1: Bathroom with an 8-foot ceiling: 7 feet wide x 9 feet long x 8 feet high x 0.13 = 66. Select a fan with at least 70 CFM.

Example 2: Bathroom with a 9-foot ceiling: 10 feet wide x 9 feet long x 9 feet high x 0.13 = 105. Select a fan with at least 110 CFM.

Air Fan

For a safe and comfortable living environment, proper ventilation throughout the house is essential.

Hon&Guan fans provide the right solution for ventilating the room and continuously refreshing the indoor air. They help eliminate excess humidity and keep the house dry and comfortable, thus preventing mold. IP45 protection rating. Made of high-quality ABS plastic, durable, UV-resistant, and easy to clean. 100% copper coil motor. Copper motor with overheat protection. Suitable for window, wall, or ceiling mounting. Operating temperature range: -20 ~ 50 ℃. ABS Material: The fan is made of high-quality, flexible ABS plastic, which is corrosion-resistant and anti-aging. IP45 Protection Rating: The bathroom fan has an IP45 protection rating, making it water and dust resistant. daily.

Copper-wound motor

Integrated copper motor with thermal protection for continuous, maintenance-free operation.
