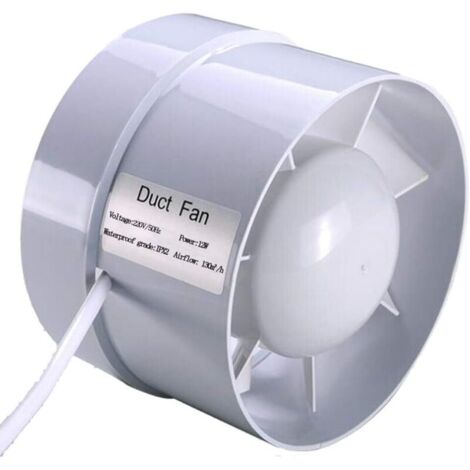

100mm Silent Air Extractor 12W 130m³/h Energy Efficient Mixed Flow Duct Fan for Bathrooms, Vents, Greenhouses, Tents (4 inch)

General Description

This 100mm (4 inch) silent air extractor fan is designed to improve air circulation in various environments such as bathrooms, shops, basements, attics and grow tents. With a power of 12W and an airflow of 130 m³/h (76 CFM), it offers an efficient and energy-saving solution for eliminating odors and exhaust fumes.

Technical Specifications

• Diameter: 100 mm (4 inches)
• Airflow: 130 m³/h (76 CFM)
• Speed: 2400 rpm
• Rated Voltage: 220V
• Power: 12W
• Frequency: 50Hz
• Shell Material: ABS
• Bearing Type: Sleeve
• Temperature Resistance: Up to 40°C
• Lifespan: Over 3 years

Installation

• Install the fan with a 4-inch ventilation duct or directly into the wall.
• The fan is equipped with a 40 cm cable for easy connection to the electrical circuit.
• Secure the fan firmly to prevent noise caused by play.
• Avoid blowing in one direction in an enclosed environment to prevent air pressure differences.

Use

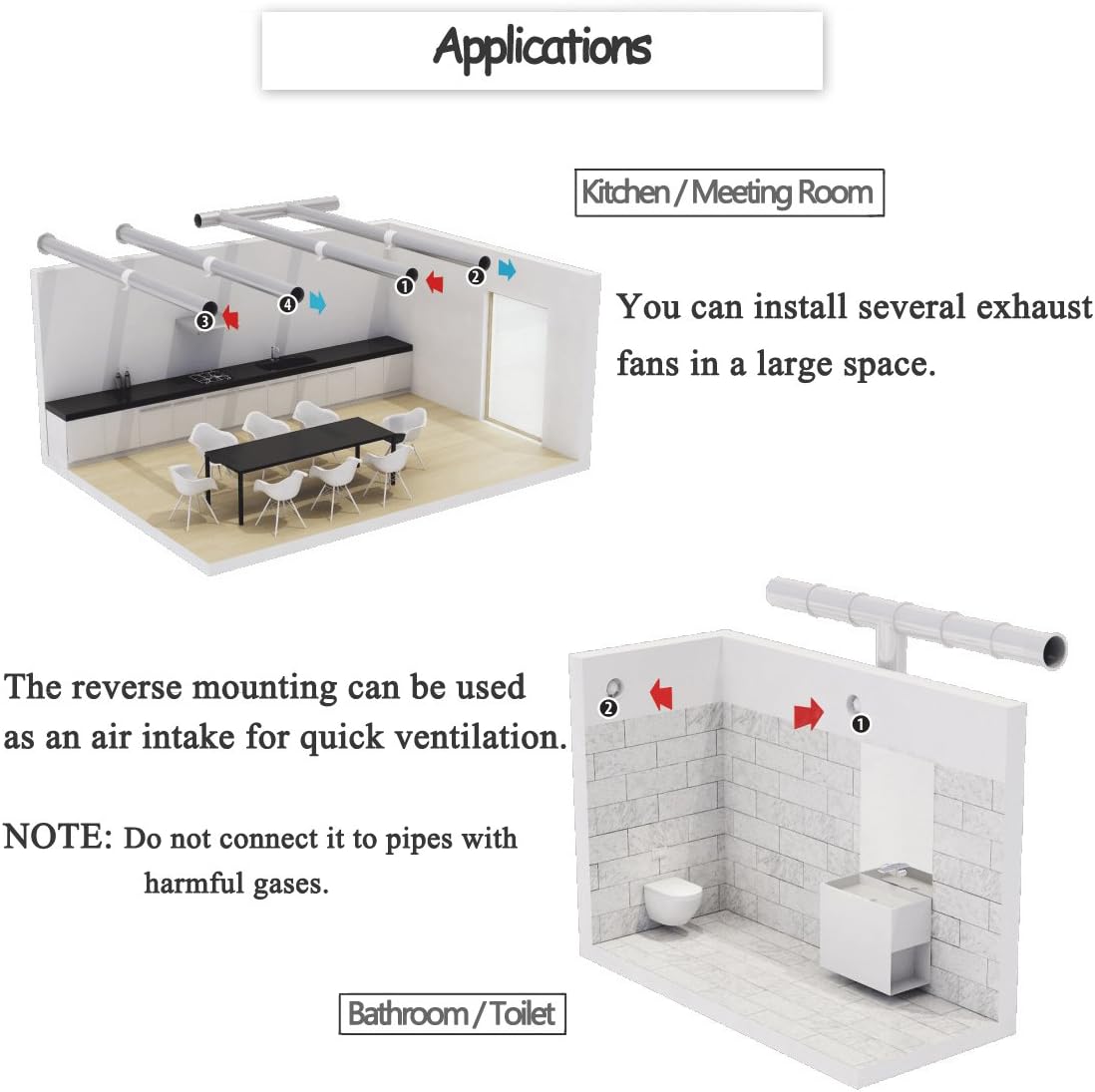

• Connect the fan to the middle or both ends of the duct to create a custom air circulation system.
• To adjust the airflow, a speed control switch can be added.
• If the airflow is insufficient, consider adding more fans.
• For use in a bedroom, place the fan away from the bed to minimize noise.
