General description

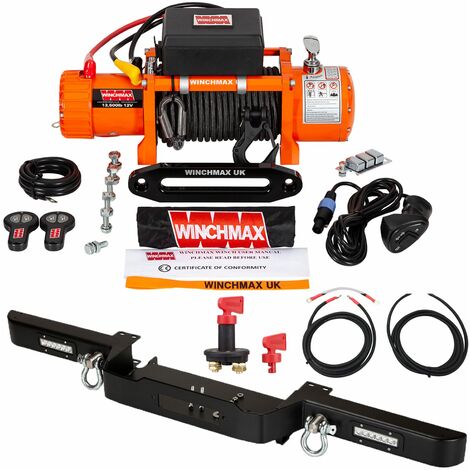

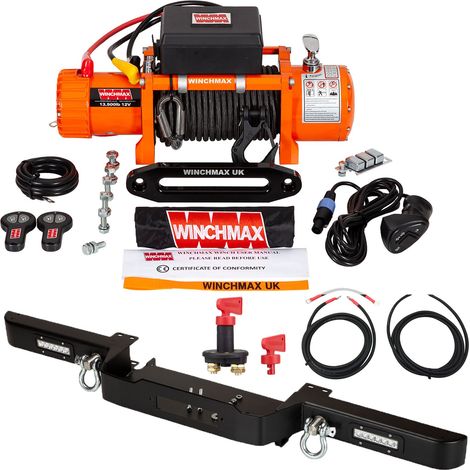

Everything you need to install a tough and powerful electric winch on your Land Rover Defender. This 13,500lb (6,123kg) Original Orange 12V Winch comes with a Defender bumper, 25m x 10mm Armourline rope, wiring kit, and isolator. It features twin wireless remote controls for ease of use and fits both Aircon and non-Aircon Defenders.Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp/5.1kw series wound
- Control: Big grip remote switch, 4.5m lead
- Gear Train: 3 stage planetary
- Gear Reduction ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 63.5mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Galvanised
- Cable: 25m x 10mm Dyneema SK75 synthetic rope
- Hook: Tactical clevis hook 3/8 inch
- Fairlead: One-piece billet aluminium hawse fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
- Winch Finish: Matt black (low light paint)
- Weight (GW): 30kg (66lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Compatibility and accessories
- Compatible with Land Rover Defender models (both Aircon and non-Aircon)
- Includes WINCHMAX bumper modeled on the Defender part VPLDP0105 (5mm thick steel)
- Includes WINCHMAX wiring cable kit designed specifically for Land Rover Defenders
- Includes WINCHMAX heavy-duty battery isolator switch with 2 twist and release keys
Installation
- Attachment bolts included for easy installation
- Drilled to allow original bumper end caps to be transferred from your existing winch bumper
Usage
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.'/%3E%3C/svg%3E)
