General description

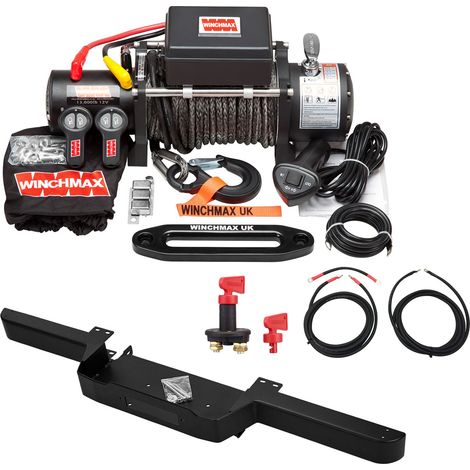

13,500lb (6,123kg) Military Grade 12V Winch designed for Land Rover Defenders, complete with a winch bumper, Dyneema rope, wiring kit, and isolator. This powerful electric winch features twin wireless remote controls for ease of use.Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp/5.1kw, series wound
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 64mm (2.52”), Length 224mm (8.82”)
- Drum Finish: Galvanized
- Cable: 28m of 11mm Dyneema SK75 12 strand synthetic rope
- Hook: Competition hook with safety catch
- Fairlead: Aluminium hawse fairlead
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 6.5mm diameter
- Battery: Recommended 650CCA minimum for winching
- Winch Finish: Matt black (low light paint)
- Weight (GW): 30kg (66lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Fits both Aircon and non-Aircon Defenders.
- Includes WINCHMAX bumper modeled on the Defender part VPLDP0105 (5mm thick steel) with a durable powder-coated finish.
- WINCHMAX wiring cable kit designed specifically for Land Rover Defenders, featuring premium quality British standard EN60228 35mm2 copper cable.
- Heavy-duty battery isolator switch with 2 x twist and release keys.
Installation
- Drilled to allow original bumper end caps to be transferred from your existing winch bumper.
- Attachment bolts included for easy installation.
Usage
- Ideal for off-road recovery and heavy-duty pulling tasks.
- Utilizes twin wireless remote controls for convenient operation.
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.'/%3E%3C/svg%3E)
