General description

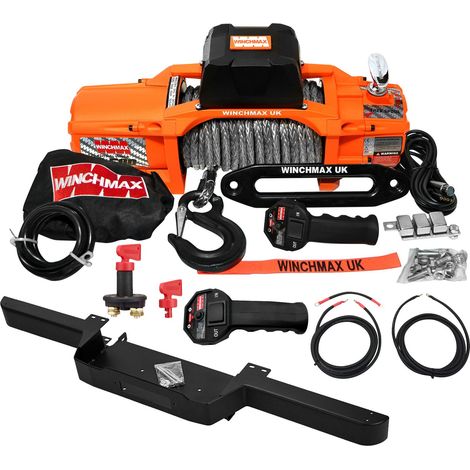

Everything you need to install a tough and powerful electric winch on your Land Rover Defender. This 13,500lb (6,123kg) SL Series 12V Winch comes with a Defender bumper, 28m x 11mm Dyneema rope, wiring kit, and isolator. It fits both Aircon and non-Aircon Defenders.Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp/5.1kw series wound
- Control: Big grip remote switch, 4.5m lead
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 63.5mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Black, painted
- Cable: 28m x 11mm Dyneema SK75 multi-strand rope
- Hook: Competition hook with safety catch
- Fairlead: One-piece billet aluminium hawse fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm Diameter
- Finish: Original Orange powder-coated
- Weight (GW): 30kg (66lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Compatibility and accessories
- Fits both Aircon and non-Aircon Defenders.
- Includes WINCHMAX bumper modeled on the Land Rover part VPLDP0105 (5mm thick steel).
- Includes WINCHMAX wiring cable kit designed especially for Land Rover Defenders.
- Includes WINCHMAX heavy-duty battery isolator switch with 2 x twist and release keys.
Installation
- Drilled to allow original bumper end caps to be transferred from your existing winch bumper.
- Attachment bolts included.
Usage
- Ideal for off-road recovery and heavy-duty pulling tasks.
- Utilizes twin wireless remote controls for convenient operation.
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.
