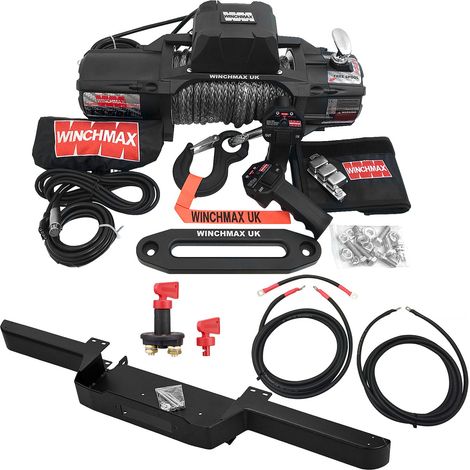

13,500lb (6,123kg) 'SL Series' 12v Military Grade Winch. 28m x 11mm Dyneema Rope, Defender Bumper, Isolator.

Name: 13,500lb (6,123kg) 'SL Series' 12v Military Grade Winch. 28m x 11mm Dyneema Rope, Defender Bumper, Isolator.
Brand: WINCHMAX
SKU: WMSL1350012VMILSPECSYN,WMBPRTYP1,WMDEFBA
Price: 899.95 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Winchmax Ltd

Product information

Description

General description

13,500lb (6,123kg) SL Series Military Grade 12V Winch designed for Land Rover Defender.

Includes a durable Defender winch bumper, Dyneema rope, wiring kit, and isolator.

Features twin wireless remote control for ease of operation.

Technical specifications

Single Line Rated Pull: 13,500lb (6,123kg)

Motor: 12V 6.8hp/5.1kw series wound

Control: Big grip remote switch with 4.5m lead

Gear Train: 3 stage planetary

Gear Reduction Ratio: 265:1

Clutch: Sliding ring gear

Braking Action: Automatic in the drum

Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”)

Drum Finish: Galvanized

Cable: 28m x 11mm Dyneema SK75 synthetic rope

Hook: Competition hook with safety catch

Fairlead: One-piece billet aluminium hawse fairlead

Battery: Recommended 650CCA minimum for winching

Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter

Winch Finish: Matt black (low light paint)

Weight (GW): 30kg (66lb)

Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)

Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)

Motor Current: 65-500A

No Load Line Speed: 7.5m/min (24.6 ft/min)

Waterproof: IP67 Rating

Compatibility and accessories

Fits both Aircon and non-Aircon Defenders.

Includes WINCHMAX bumper modeled on the Land Rover part VPLDP0105 (5mm thick steel).

Wiring cable kit designed specifically for Land Rover Defenders with premium quality copper cable.

Heavy-duty battery isolator switch with 2 twist and release keys.

Installation

Everything needed for installation is included in the package.

Attachment bolts for the bumper are included.

Usage

Ideal for off-road recovery and heavy-duty pulling tasks.

Operated via twin wireless remote control for convenience.

Other information

Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components.

VAT invoice provided with every sale.

Features

Brand
WINCHMAX
Origin
Made in China
Colour
Black
Maximum load
6.123 kg
Remote operation
Yes
Cable diameter
11 mm
Supplied with hauling pulley
Yes
IP rating
IP67
Width
16 cm
Length
61 cm
Material
Steel
Operating Mode
Electric
Weight
57.25 kg
Presence of brake
Yes
Power
5100 W
Power supply
Electric
Voltage
12 V
Winch operating type
Straight Line Pull
Sold with cable
Yes
ManoMano Reference
ME41603369
MMID
330402968902
Product code
WMSL1350012VMILSPECSYN,WMBPRTYP1,WMDEFBA
EAN
8438569490888
