General description

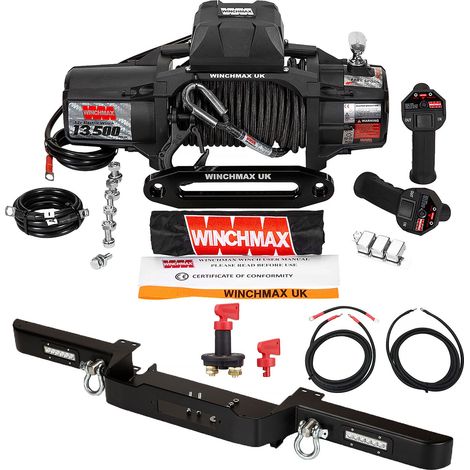

The 13,500lb (6,123kg) SL Series Military Grade 12V Winch is designed for heavy-duty performance, making it an ideal choice for your Land Rover Defender. This winch comes complete with a Defender bumper, 25m x 10mm Armourline rope, wiring kit, and isolator, providing everything you need for a robust installation. It is compatible with both air-conditioned and non-air-conditioned Defenders.
Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp series wound
- Control: Big grip remote switch, 4.5m lead
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Galvanized
- Cable: 25m x 10mm Armourline synthetic rope
- Hook: Tactical clevis hook 3/8 inch
- Fairlead: One-piece billet aluminium hawse fairlead
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
- Winch Finish: Matt black (low light paint)
- Weight (GW): 30kg / 66lb
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Compatibility and accessories
- Fits both air-conditioned and non-air-conditioned Land Rover Defenders.
- Includes a heavy-duty battery isolator switch with 2 twist and release keys.
- Wiring power cable extension kit designed specifically for Land Rover Defenders, made with premium quality EN60228 35mm2 copper cable.
Installation
Installation is straightforward with the included wiring kit and attachment bolts. The winch is designed to fit seamlessly onto the Land Rover Defender bumper, allowing for easy transfer of original bumper end caps.
Usage
This winch is perfect for off-road enthusiasts and those needing reliable pulling power for recovery operations. The wireless remote control allows for convenient operation from a distance, enhancing safety during use.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
